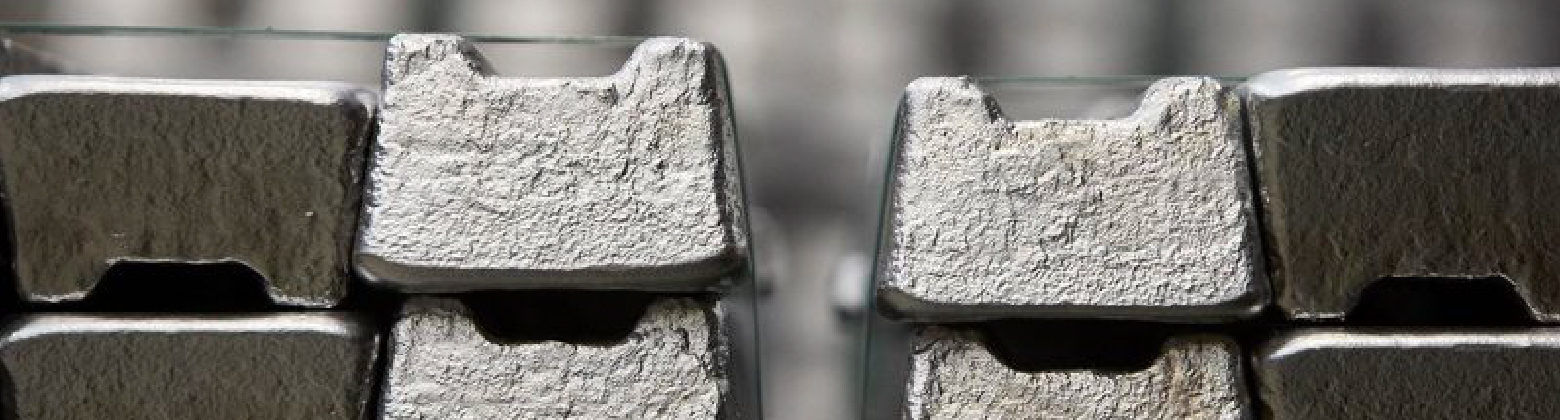

ALUMINUM ALLOY 413
413 is an aluminum die casting alloy that is cast using the cold chamber die casting process. It has a balanced combination of physical and mechanical properties which makes it a good choice for many die casting applications.
Advantages
Aluminum 413 alloy has some unique features that make it suitable for die casting. Some of the key advantages include,
- Balanced thermal and mechanical properties
- Excellent fluidity
- High-pressure tightness
- Hot cracking resistance
Applications
Aluminum 413 has various die casting applications where its special properties are desirable. The excellent fluidity of the alloy makes it suitable for casting intricate parts. Moreover, it has good pressure tightness which makes it ideal for manufacturing hydraulic cylinders.
Mechanical Properties
| Parameters | Value |
| Brinell Hardness | 80 HB |
| Ultimate Tensile Strength | 295 MPa |
| Yield Strength (0.2%) | 145 MPa |
| Shear Strength | 170 MPa |
| Fatigue Strength | 130 MPa |
| Elongation | 2.5 % in 50mm |
| Modulus of Elasticity | 73 GPa |
| Machinability | 30% |
Physical Properties
| Parameters | Value |
| Electrical Conductivity | 31.0 % IACS |
| Thermal Conductivity | 113 W/mK |
| Melting Point (average) | 574 – 582 °C |
| Specific Heat Capacity | 963 J/Kg.K |
| Coefficient of Thermal Expansion | 20.4 µm/m°K |
| Density | 2.66 g/cm³ |
Alloy Composition
| Contents | Value |
| Aluminum (Al) | Balanced |
| Silicon (Si) | 11-13 % |
| Magnesium (Mg) | 2.0 % |
| Zinc (Zn) | 0.5 % |
| Tin (Sn) | 0.15 % |
| Copper (Cu) | 1.0 % |
| Manganese (Mn) | 0.35 % |
| Nickel (Ni) | 0.5 % |
| Iron (Fe) | 2.0 % |
| Other | 0.25 % |
Aluminum A413 vs 413: What’s the difference?
Aluminum 413 alloy should not be confused with A413 alloy. While both A413 and 413 are alloys of aluminum, they have slightly different characteristics. 413 Alloy has a higher Magnesium content than A413 but has a lower Iron content. The Elongation at the break for 413 is 2.5% while A413 is 3.5%. Also, A413 has higher thermal conductivity and coefficient of thermal expansion. Other than these, most of the mechanical and physical properties are quite similar.
A413 alloy is great for parts that must have high-pressure tightness. 413 has more balanced properties and is suitable for common die-casting applications. But it’s easy to get confused with so many choices for aluminum alloys. You can contact us without any hesitation if you need help choosing the right alloy for your project.
