This machine is employed within specialized industrial contexts. It injects molten metal into a mold cavity at high speed to produce die casting parts. It processes the molten metal alloys to create parts and its specialty is that it processes the metal under high pressure, which leads to rapid solidification and produces tough and intricately shaped parts.
These machines enable efficient and cost-effective production of die casting parts. The most important sub-system of a die cast machine is its metal injection system. It also contains a furnace, mold clamping system, and various other control systems for balancing temperature and metal injection pressure.
The Process Steps of a Die Casting Machine
As a die casting machine is a highly compact and synchronized system of different parts, each of its sub-systems and parts performs a separate task from preparing the molten metal to injecting it into the mold cavity.
Its hydraulic system, which transfers molten metal into the die, along with the injection mechanism, is some of its core features. The following sequence of well-defined process steps clarifies how a die cast machine processes the molten metal to produce parts.
i. Melting and Preparing the Metal Alloy:
As an initial step, alloys like aluminum are melted at high temperatures. Melting of alloys for die casting takes place in a separate furnace or melting unit.
Gas and electricity are common means to melt the alloys and maintain them at a desired temperature. At this point, the alloys are ready for injection into the die-cast machine.
ii. Mold Preparation:
A mold pair is prepared from hardened steel, which replicates the desired part but is hollow. The mold is machined with meticulous precision to match the exact measurements, size, and intricate features of the parts.
Afterward, this mold pair is carefully inserted and precisely fitted into the die casting machine to initiate the injection process.
iii. Metal Injection Phase:
Die casting machines are directly responsible for this phase as it involves high-speed metal injection into the mold cavity. The injection mechanism of a die cast mahcine generates high pressure results in injecting the metal into the mold cavity at high speed to ensure the precise filling.
iv. Cooling and Solidification:
Coolants or cold water circulating through the channels in the die carries out cooling of molten metal. Cold water or a coolant starts circulating through the channels in the die, rapidly cooling down the molten metal.
v. Ejection of the Casting:
Removing the die from the die casting machine and opening it to eject the finished part is the final step of the process. The die and die casting machine contains ejection pins or other mechanisms to ensure a secure removal of the die.
vi. Surface Finishing:
Surface finishing or other post-processes are performed on the finished part either to remove excess material (flash or extra metal) or to achieve desired specifications. It may involve machining or surface treatments of the finished die-cast parts.
vii. Quality Inspection:
Each finished part is subject to rigorous quality control which ensures it meets the specified tolerances and quality standards. Quality inspection of parts involves visual inspections, dimensional measurements, and other tests carried out by professionals to verify the die casting machine parts’ integrity.
Hydraulic working principle of die casting machine
Die casting machines are predominantly hydraulic. Hydraulic systems in die casting machines control the injection process of molten metal into the die with precise speed and force. Furthermore, they also contribute to temperature control within the mold cavity, ensuring optimal casting conditions.
Overall, hydraulic power enables the efficient and accurate production of metal castings with complex shapes and tight tolerances in die casting operations. The hydraulic system of die casting machines operates in distinct stages:

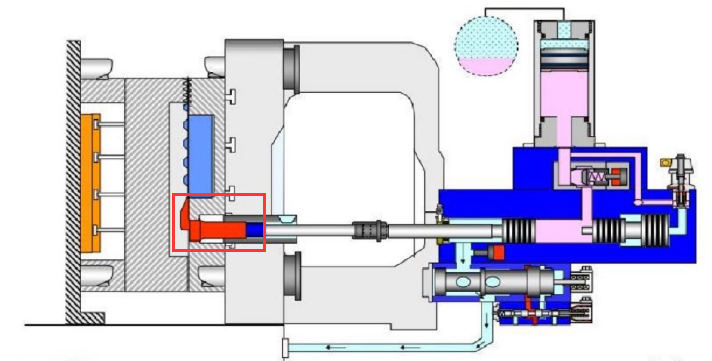

Low speed stage
The clamping mechanism of hydraulic system in die casting machine assists with securely close the mold halves. The machine then clamps the mold halves together with a moderate amount of force.
It makes sure no leakages occur at a later stage when injecting the molten metal into the mold cavity. This whole process is carried out precisely to provide a secure environment for the die casting process to initiate.

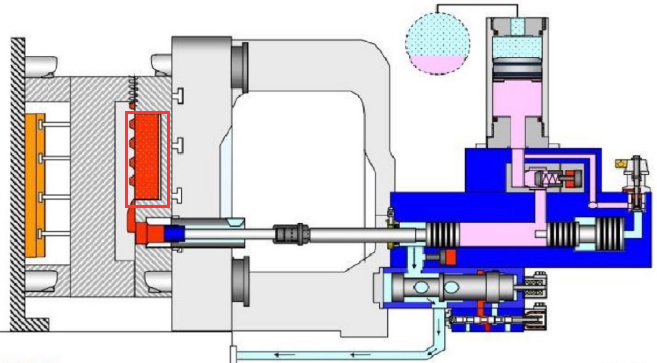

High speed stage
Securing the die triggers a high-speed injection process, where molten metal surges into the mold cavity. Injecting the molten metal into the die at high speed guarantees its proper filling and eliminates any possibility of bubbling/porosity in the resulting parts.
Booster stage
To ensure forceful injection of the molten alloy, a booster stage elevates the pressure within the system before filling the mold cavity. Manufacturers often incorporate a booster stage to guarantee an accurate filling of the mold. It contributes to achieve exceptional precision in parts dimensions and size.
Key parameters of die casting machine performance
What defines the overall performance of a die cast machine is its mold clamping force, boost pressure ratio, and many other parameters crucial to its success. They furthermore directly impact its quality and efficiency.
Mold clamping force
It’s the force responsible for keeping the mold sealed for precision metal injection. Die casting machines employ higher clamping forces for casting larger and more intricately complex parts.
Dynamic injection force
It’s the force of a die cast machine’s hydraulic system to pressure the molten metal and inject it into the mold cavity. It’s vital for accurate and defect-free filling of the mold cavity.
Setting time for pressure
It is the duration for which a die cast machine maintains the metal injection pressure to precisely fill the mold until its solidification.
Boost pressure ratio
It is the additional pressure applied during the metal injection phase of the booster stage. It guarantees precise filling of the mold cavity.
Maximum injection speed
It’s the maximum speed of a die casting machine’s hydraulic system during injection phase. It is vital to control this speed for maintaining higher part quality and preventing defects.
Practical Applications of Die Casting Machine
Various industries employ die casting machines to manufacture parts with incredible, intricate designs and due to their incredible manufacturing repeatability.
The specialized aluminum die casting machine provides remarkable functionality for fabricating aluminum parts and guarantees superior performance and quality results in production.
Some practical applications of the die-casting machine are as follows:
- The electronics industry benefits from die casting for producing housings for electronic devices and heat sinks.
- The automotive industry, which relies heavily on die casting for manufacturing engine components, transmission parts, and chassis components.
- In the consumer goods industry, die casting machines are ideal for high-volume production of hardware, tools, and other kitchen appliances.
- In the aerospace industry, die casting machines produce aircraft engine parts and structural components.
- In the medical field, die cast machines produce superior quality medical devices and their components.
Furthermore, die casting machines play a crucial role in the industrial machinery sector for producing various machine components and parts.
Conclusion
In modern manufacturing, die casting machines pivotally contribute by enabling the production of complex and precise metal parts crucial to numerous industries.
By understanding the key parameters and hydraulic principles behind these machines, manufacturers can optimize their operations and produce high-quality components meeting the demands of today’s competitive markets.
