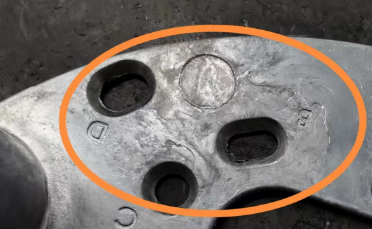

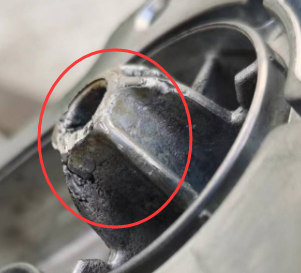

Short fills are one of the exterior defects to affect die-casting parts. It specifically refers to the absence or deficiency of some of the casting materials from the surface area or texture. In other words, some surface materials seem missing from the exterior sides.
In the die-casting industry, short fill defect may also be called misrun. It’s entirely possible to recognize the problem through a proper visual inspection. However, this visible surface flaw primarily appears in pressure die casting rather than others. This article took a brief dive into the causes, effects, and preventive measures for short fill die-casting defect.
Sources of Short Fills in Die Casting
The leading causes of die-cast short filling include several important flaws in casting, like –
- Improper Fluidity– Compromised, poor, or insufficient fluidity of the molten metal alloy is the prime reason. The cavity filling gets distorted due to alterations in required fluidity.
- Insufficient Filling– Poor or unsatisfactory filling condition gives a hand to cause less cavity. The cavity itself plays a large part in preventing or provoking surface defects.
- Low Casting Temperatures– It’s more like a reason to initiate poor fluidity, eventually resulting in short fills. Low filling temps or die-casting temps can also exert the same effects.
- Impurities or Contamination– It may occur due to the presence of impurities like gases or inclusions. Too much iron (Fe) content in compositions can also lead to this fluidity problem.
- Low Injection Pressure– The injection pressure during casting often gets easily altered due to adjustments. If the pressure is low, the chances of missing surface materials increase.
- High Back Pressure– Meanwhile, impurities and contamination can trigger back pressure buildup in the cavity. And it can possibly hinder the filling process by introducing short filling.
- Excessive Release Lubricants– Too many mold-release agents or lubricants yield gaseous contamination. Their buildup in the die cavity affects the entire process to causes issues.
Not to mention, these sources eventually trigger several devastating issues in die-casting. So, avoiding the sources is a must for all manufacturers to maintain satisfaction, quality, and performance.
Effects of Short Fill in Die Cast Parts
Some of the noteworthy aftermaths of having short fills onboard include –
- Compromised or damaged aesthetics as the missing surface remains visible.
- Possible lowering of die-cast strength if the defect occurs on critical sections.
- Future worsening of the defect by peeling off or wearing off of the surface.
Preventing Die-Casting Short Fills
In simple words, adjusting the filling process can help avoid the formation of short fills in die-cast parts. However, implementing the following actions throughout the process can certainly reduce its effects –
- Using the exact smelting process to remove gaseous inclusions as well as other contaminations.
- Setting the rightfully required casting temperatures and the mold temperatures during casting.
- Choosing the perfect gate location in the cavity with its diversion method for satisfying fluidity.
- Increasing the injection speed to minimize the effects of pressure buildups in the casting cavity.
- Replenishing nitrogen (N) in the casting parts can increase the effective pressure to avoid buildups.
- Using multiple ingates for non-conform castings, shape castings, and large casting is beneficial.
- Improving the overall casting structure while maintaining uniform wall thickness across the cavity.
- Addition of overflow launders and even some venting launders to the short-filling-prone spots.
- Choosing the right mold-releasing agent based on the die-casting metal alloys and using the right amount.
The alloy quality as well as the cavity condition are also important to avoid triggering any defects. While the alloy must remain free of existing contamination, the cavity must hold uniformity in shape and size. A precise casting-filling operation should get rid of all kinds of surface defects, including shortfill. It’s advised to ensure the process parameters properly to meet the satisfaction.
