Structural die casting represents an exceptional technique for fabricating resilient, intricately designed, and lightweight components utilized across the automotive, aerospace, and construction sectors. Its significance in contemporary industries lies in its capacity to produce parts characterized by both strength and low weight, thereby playing a pivotal role in elevating operational efficiency and overall performance.
The meticulous precision entailed guarantees not only the durability but also the sophistication of these components. In the following article, we will simplify the entire manufacturing process, making it accessible for you to comprehend each step.
Introduction to Structural Die Casting
Structural die casting is a type of die casting that focuses on producing parts and components with a primary emphasis on structural integrity and strength.
The procedure includes injecting liquid metal into a carefully crafted mold which leads to the production of finely detailed components well-suited for applications that require strong and dependable parts.

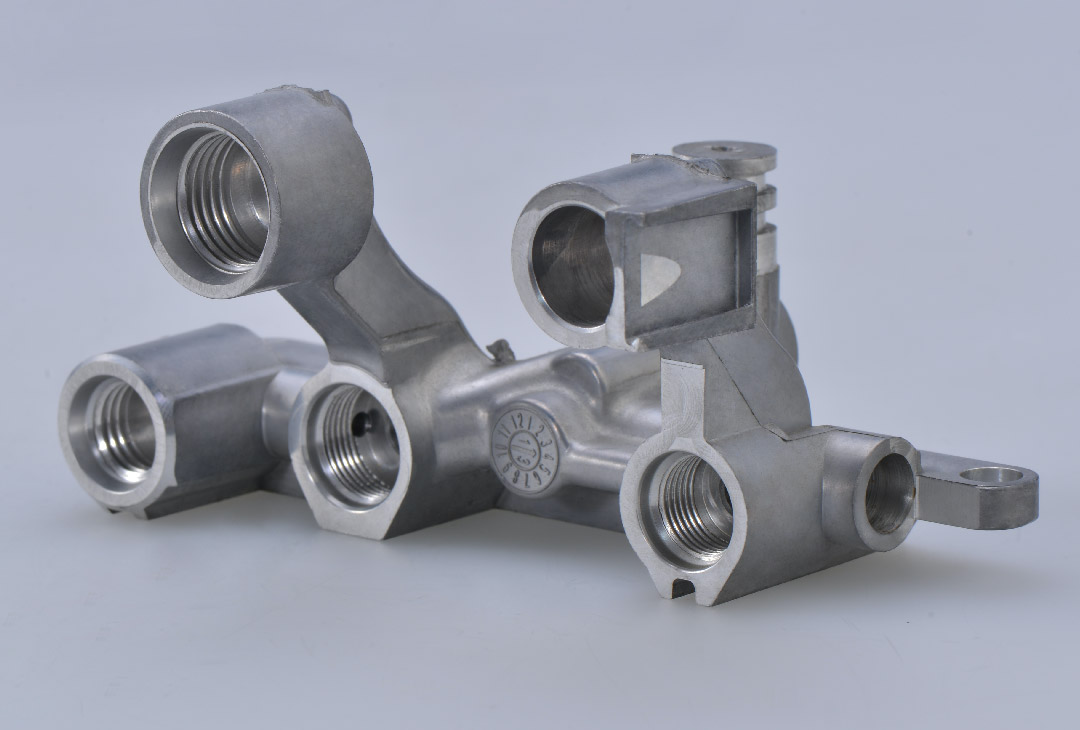

Die Casting Manufacturing Process for Structural Components
1. Part Requirements
The procedure starts with a thorough examination of the particular needs of the component, including its dimensions, shape, and material characteristics.
Defining the component’s size is vital, which entails specifying its length, width, and height. The shape of the component, whether it’s intricate or straightforward, significantly influences subsequent phases.
Comprehending the properties of the material, such as strength and durability, is essential for its intended application, ensuring it fulfills performance requirements. These requirements guide all subsequent steps in the die casting manufacturing process.
2. Alloy Selection
Choosing the right alloy is crucial to meet the mechanical and thermal properties required for structural components. Commonly, aluminum and zinc alloys are preferred for their exceptional combination of lightweight properties and robustness.
These alloys enable the production of components that are both strong and efficient, aligning perfectly with the demands of structural applications.
3. Die Concept & Design
A meticulously designed die or mold shapes the component. It considers factors like part geometry, draft angles, and ejector pin placement, ensuring successful casting and an accurate final product.
4. Die Filling & Solidification Simulation
Die filling and solidification simulation software plays a crucial role in enhancing mold design by promoting uniform material flow and reducing defects like porosity and shrinkage during solidification. Additionally, it grants die casting manufacturers the ability to fashion components of superior quality and enhanced reliability.
5. Aluminum Treatment
For aluminum alloys, diverse methods exist to enhance the material’s attributes. Heat treatment procedures are utilized to enhance its strength and endurance, and tweaks in the alloy composition can finely adjust its traits for the planned use.
These processes guarantee that the aluminum alloys utilized in structural components are custom-crafted to fulfill the most stringent performance and reliability standards in rigorous industries.
6. Vacuum
By employing a vacuum, manufacturers can adeptly reduce the occurrence of gas-related imperfections and flaws in the structural component. This action plays a pivotal role in ensuring the creation of an immaculate, flawless end product.
The vacuum technique plays a substantial role in the holistic excellence and reliability of the structural components, rendering them highly appropriate for challenging applications across diverse industries.
7. Die Casting Machine
Die casting machines inject liquid metal into the mold cavity with substantial force. These machines exhibit exceptional precision and mastery, affirming the comprehensive excellence and uniformity of the components.
Manufacturers meticulously adjust these machines to align with the demanding specifications of each project, empowering the components to conform to the utmost rigorous benchmarks spanning numerous industries.
8. Filling
As the molten metal enters the mold, it permeates all voids, assuming the intended form during the gradual cooling and solidification process. This meticulously managed cooling sequence is pivotal in attaining the targeted robustness and structural soundness of the end result.
9. Part Cooling
Effective cooling plays a crucial role in upholding the structural soundness of the component. The presence of cooling channels intricately woven into the mold serves as the guardians of the cooling process, thwarting any tendencies toward warping or cracking.
Positioned strategically within the mold, these cooling channels serve as conductors of precision, orchestrating a gradual and even transformation from molten fluidity to solid resilience.
10. Spraying Process
Following the casting process, the application of a release agent comes into play, facilitating the seamless extraction of the component from the mold. This meticulous maneuver guarantees the component’s graceful parting from the die.
The astute application of release agents becomes an artful stroke that safeguards the intricate nuances and surface finesse of the part, all while upholding the mandate to meet the exacting specifications and standards of quality.
11. Trimming
Excess material, like the remnants of gates and flashes, undergoes a precise trimming process, culminating in the attainment of the ultimate part dimensions and aesthetic finesse. This orchestration guarantees the component’s seamless synchronization with the designated specifications, encompassing both its size and visual allure.
This surgical excision of superfluous materials is the assurance that the part ascends to the zenith of quality standards, poised and prepared for the ensuing phases of production or assembly.
12. Thermal Treatment
Certain structural components may be subjected to supplementary heat treatment, aimed at elevating their mechanical attributes, encompassing hardness and robustness. Employing meticulously regulated heating and cooling sequences, the material’s inner framework undergoes alteration to instill precise desired attributes.
Thermal treatment stands as a pivotal stage, where the very essence of the structural components is meticulously fashioned to flawlessly harmonize with the exacting prerequisites of their intended applications.
13. Straightening
In a multitude of industries where precision and uniformity reign supreme, the significance of precision straightening processes cannot be overstated. The adherence of components to rigorous dimensional tolerances stands as a pivotal factor in their seamless integration within intricate assemblies.
To address any imperfections that might have arisen during the die casting process steps, a meticulous application of hydraulic or mechanical straightening techniques comes into play, ensuring that each element aligns flawlessly with its destined perfection.
14. Quality Control

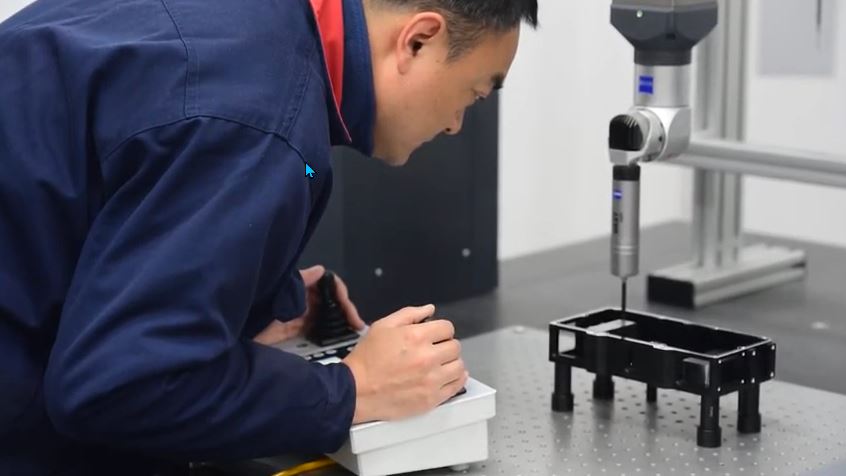

Quality control in structural die casting is crucial for component reliability and longevity. From sourcing raw materials to final product inspection, every stage undergoes stringent inspection.Important methods like X-ray and computerized tomography detect internal defects, while visual checks and dye penetrant testing pinpoint surface flaws. Dimensional accuracy is assured with CMMs and precision gauge tools. Mechanical properties are validated through tests like tensile strength measurements. Moreover, the salt spray test evaluates corrosion resistance, ensuring the component’s resilience against environmental factors. Comprehensive quality checks ensure durable and dependable die-cast components.
15. Stable Product Quality
The inherent strength of the die-casting process in maintaining unwavering product quality forms the cornerstone of its success in industries reliant on robust structural components. With minimal disparities among parts, it assures not only reliability but also the convenience of interchangeability, simplifying the intricacies of assembly and maintenance.
This steadfast reliability engraves an enduring legacy, firmly establishing die casting as an indispensable craft in sectors where precision and uniformity stand as sacred tenets.
Advantages of Die Casting for Structural Components
Structural die casting offers several advantages for manufacturing structural components:
- Material Efficiency: Die casting minimizes material waste by using only the required amount of metal, making it a sustainable option.
- Precision and Tolerance: The process yields components with tight tolerances and intricate designs, ensuring high precision.
- Cost-Effective Mass Production: Die casting is ideal for large-scale production, reducing unit costs as production volumes increase.
- Surface Finish: The process often produces parts with a smooth and polished surface finish, reducing the need for secondary operations.
Die Casting Materials for Structural Components
Frequently employed materials in structural die casting encompass:
- Aluminum Alloys: Renowned for their lightweight nature and corrosion resistance, aluminum alloys such as A380 and A383 are prevalent choices.
- Zinc Alloys: Sought after for their robustness and superior dimensional stability, zinc alloys are commonly selected for their strength.
Applications of Die Cast Structural Components
Die-cast structural components find applications in various industries, including:
- Automotive: Engine components, transmission parts, and structural elements.
- Aerospace: Aircraft components requiring high strength and reliability.
- Construction: Structural connectors, brackets, and fasteners for building and infrastructure.
Conclusion
Structural die casting delivers high-strength components, crucial for industries like automotive and aerospace.
Sunrise Metal, certified in ISO 13485, IATF 16949, and ISO 9001, leads in providing top-quality services. With advancing technology, the future of structural aluminum die casting promises innovation.
