What is LPDC (Low Pressure Die Casting)
Low-pressure die casting (LPDE) is a cutting-edge metal casting technique that harnesses the power of controlled low-pressure environments to artfully shape and craft molten metal into intricate and multifaceted components. This innovative process has revolutionized the way we create complex metal parts, offering precision and versatility that were previously unattainable.
In LPDC, a precisely low level of pressure is applied on the molten metal confined within the die. Doing so guarantees a heightened degree of precision and consistency in filling the mold cavity.
LPDC occupies a pivotal position in the industry of metal casting, owing to its capacity to yield top-tier, dimensionally precise, and nearly finished components. As a result, it emerges as the favored choice across a wide spectrum of applications within the industry.

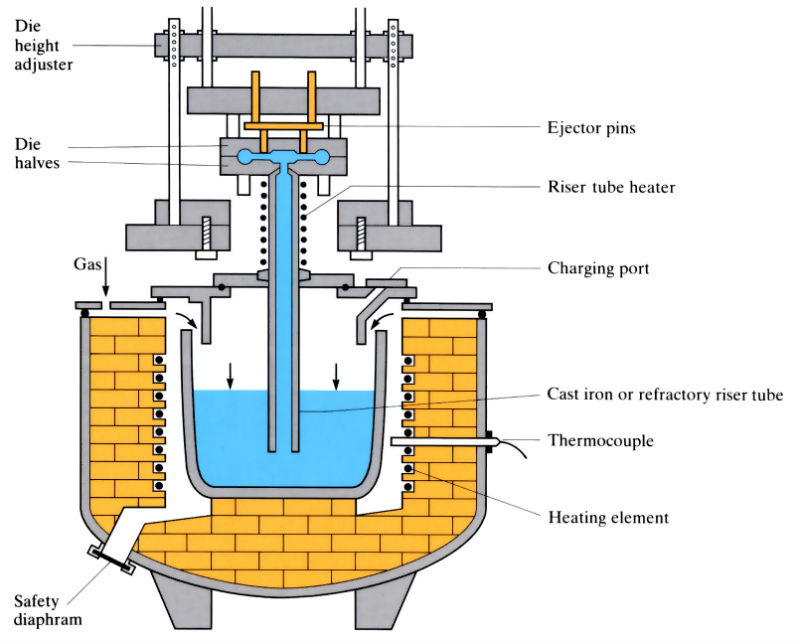

Low Pressure Die Casting Process
The low pressure die casting process starts with a preheated permanent steel mold coated with a release agent to prevent metal from sticking. Then, the mold is sealed and the furnace with the alloy is pressurized.
Molten metal is moved to a shot chamber and introduced into the mold cavity under controlled low pressure. The controlled low pressure applied is typically between 1 and 2 bars. The filling method of low pressure die casting process reduces turbulence and prevents gas from getting trapped.
After solidification, the casting is taken out, and any excess material is carefully trimmed. It reduces porosity and reduces the need for additional finishing processes which leads to excellent surface finishing of parts.
Low Pressure Die Casting Advantages and Disadvantages
LPDC Advantages:
- Superior Quality: LPDC produces parts with minimal porosity, high density, and excellent surface finish, reducing the need for secondary operations.
- Precision and Consistency: The low-pressure environment ensures accurate dimensional control and repeatability.
- Cost-Efficiency: Lower scrap rates and less post-processing translate to cost savings.
- Eco-Friendly: LPDC generates less waste and emissions compared to other casting methods.
LPDC Disadvantages:
- Limited Material Compatibility: Low pressure die casting is best suited for aluminum, magnesium, and zinc alloys which restricts its use for certain applications.
- Tooling Costs: The initial tooling costs can be high, making it less economical for small production runs.
- Slower Cycle Times: LPDC processes are generally slower than high-pressure die casting (HPDC).
Low Pressure Die Casting vs High Pressure Die Casting
LPDC and HPDC differ primarily in the applied pressure during casting. LPDC employs low pressure (typically 1-2 bars), whereas HPDC uses high pressure (up to 700 bars). Key differences include:
- Precision vs. Speed:LPDC offers higher precision and better surface finish, making it suitable for applications where aesthetics and dimensional accuracy are critical. HPDC, on the other hand, is faster and ideal for high-volume production.
- Materials:LPDC is preferred for lightweight alloys like aluminum and magnesium, while HPDC accommodates a wider range of materials, including heavier metals.
- Tooling Costs:HPDC may have lower initial tooling costs but higher operational expenses, whereas LPDC requires more investment upfront but offers cost-efficiency over time.

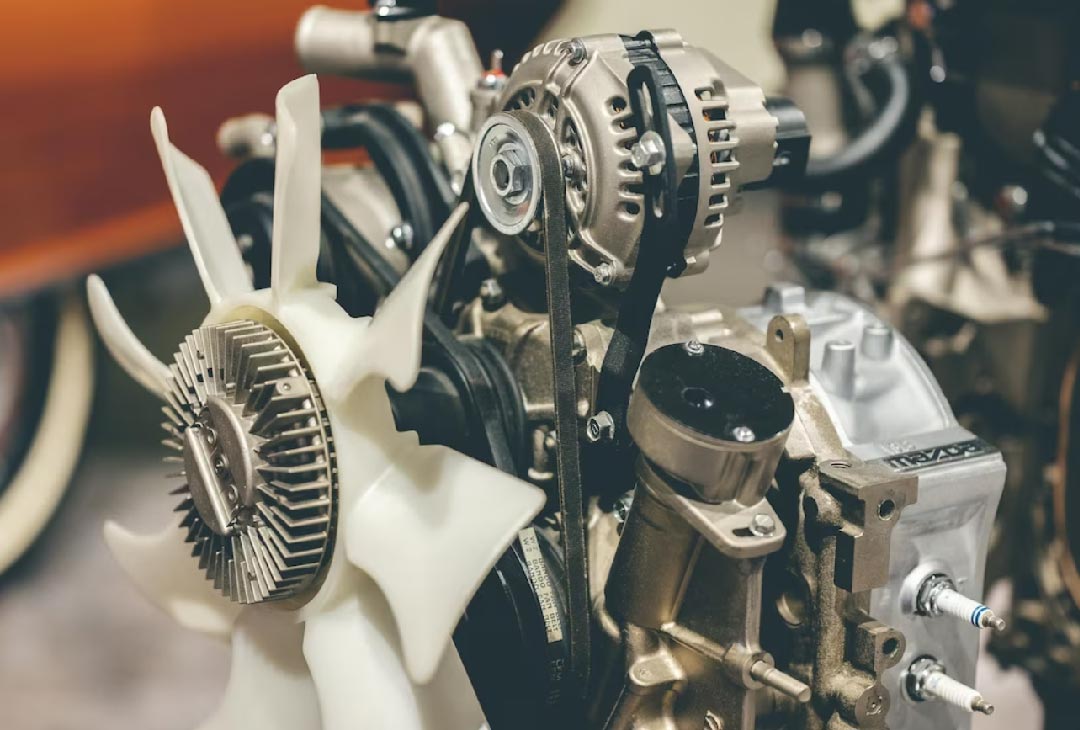

Applications of Low Pressure Die Casting
In automotive, LPDC produces engine parts like cylinder heads and transmission components, enhancing vehicle performance. Aerospace relies on LPDC for lightweight yet robust structural elements, ensuring fuel efficiency and safety.
In electronics, LPDC manufactures heat sinks for efficient heat dissipation from power transistors, extending device lifespans. It also creates precision components for industrial machinery, lighting fixtures, renewable energy systems, medical devices, and marine applications, meeting various demands efficiently.
The adaptability and precision of LPDC machines are invaluable across industries, enhancing the efficiency, safety, and performance of diverse products and applications.
When You Should Not Consider Low-Pressure Die Casting?
LPDC may not be suitable for small-scale productions or applications that require extremely fast cycle times. Additionally, if your project involves materials not compatible with LPDC, such as steel or certain exotic alloys, alternative casting methods may be more appropriate.
And if cost is your main concern and precision is not a critical factor, other die-casting processes like sand casting is an alternative.
Conclusion
Low-pressure Die Casting (LPDC) stands as an indispensable process that provides precision, quality, and sustainability advantages to various industries. Its unique capabilities cater to high-quality component manufacturing, and its influence in modern industry is set to expand, fostering sustainability objectives.
As technology and materials evolve, LPDC’s role in efficient and sustainable production processes is expected to grow, making it a compelling choice for complex component production in today’s competitive manufacturing landscape. Its enduring impact on precision manufacturing and sustainable practices will continue to benefit a wide range of industries.
