Zamak alloy primarily consists of zinc and aluminum in addition to other metals. The main components of Zamak 3 alloy have about 96% zinc and a small percent of aluminum. But there are other metals in a very small amount. The below list shows all the components of Zamak 3:
- Aluminum (Al) – 3.8 – 4.2%
- Magnesium (Mg) – 0.035 – 0.06%
- Lead (Pb) – 0.003%
- Copper (Cu) – 0.03%
- Iron (Fe) – 0.02%
- Nickel (Ni) – 0.001%
- Cadmium (Cd) – 0.003%
- Tin (Sn) – 0.001%
- Silicon (Si) – 0.02%
There are two categories of Zamak 3 properties. Mechanical properties and physical properties.
Mechanical Properties of Zamak 3
The properties that are associated with a component’s reaction against applied load are the mechanical properties of that component. For example, tensile strength, impact strength, shear strength, modulus of elasticity, hardness, yield strength, elongation, etc. The below table shows the mechanical Zinc 3 properties:
| Properties | Values |
| Ultimate Tensile Strength | 283 MPa |
| Impact Strength | 58 J |
| Yield Strength | 221 MPa |
| Yield Strength (Compressive) | 414 MPa |
| (Fracture) Elongation | 6.3% |
| (Fmax) Elongation | 3% |
| Shear Strength | 214 MPa |
| Fatigue Strength | 48 MPa |
| Hardness | 82 Brinell |
| Modulus of Elasticity | 84.3 GPa |
Physical Properties of Zamak 3
The properties which are associated with a material’s physical state are the physical properties of that material. And the physical properties of a material include the mass, density, boiling and melting points, thermal conductivity, specific heat capacity, electrical resistivity, coefficient of friction, etc. The below table shows the physical Zinc 3 properties:
| Properties | Values |
| Melting Point | 384oC |
| Density | 6.6 g/cm3 |
| Thermal Conductivity | 113 W/mK |
| Electric Resistivity | 6.37 μΩ-cm (for 20°C) |
| Co-efficient of Thermal Expansion | 27.4 μm/m°C |
| Co-efficient of Friction | 0.07 |
| Specific Heat | 419 J/kg°C |
| Latent Heat of Fusion | 110 J/g |

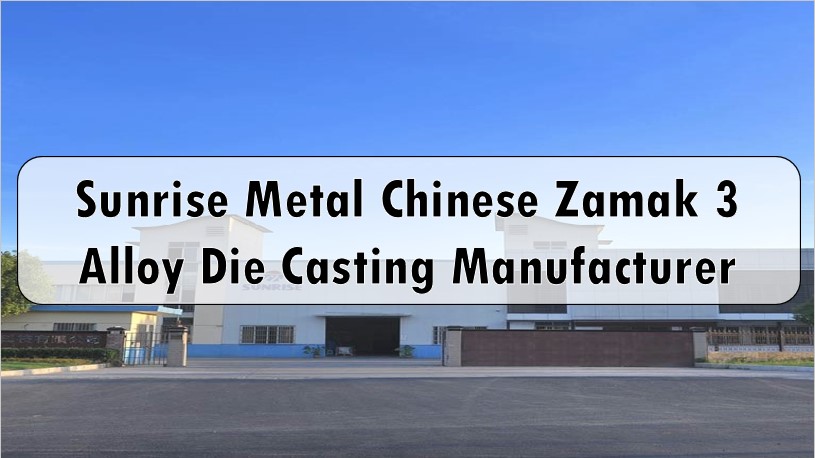

Sunrise Metal: Chinese Zamak 3 Alloy Die Casting Manufacturer
Sunrise Metal provides various services for a complete solution to Zinc 3 alloy die casting such as Die Casting Tooling, Rapid Prototyping, CNC Machining, Zinc Die Casting Production, Surface Finishing, etc. This not only saves time but also the cost of production for our clients.
Advanced Zamak 3 Casting Equipment
In our facilities, we have the latest hot chamber die casting equipment for Zinc 3 alloy. Our custom machines have a clamping force of up to 250T for this alloy. It helps us to perfectly complete challenging Zinc 3 casting projects.
Sunrise Quality Control
Sunrise Metal uses the latest measuring equipment with the highest possible accuracy to measure the Zinc 3 casting parts. For this reason, our manufactured parts are the most precise and accurate, according to the design.
Our Diecast Products
We produce diecasting products for various industries such as automotive, telecom, marine, medical, etc. Aside from zinc alloys, we also make parts with aluminum die casting. We also provide the same services for aluminum die casting.
Our Certifications
We have the IATF 16949 certification which shows our effort for achieving our clients’ satisfaction by providing high-quality services and products. Power ISO 9001 certification indicates that we promote corporate efficiency. And finally, our ISO 13485 certification shows that we are capable of producing medical devices.
If you have any other queries, you can always contact us through email or WhatsApp.
What Are the Advantages of Zamak 3 Alloy?
The Zamak 3 alloy has achieved the de facto standard which means this is the most publicly accepted Zamak alloy on the market. The advantages of using this alloy are:
- Zamak 3 has a low melting point and high fluidity. For this reason, it saves energy while it is being used to produce metal parts.
- The Zamak 3 alloy is good for casting because it allows high complexity and accuracy but low tolerance.
- This is a very versatile alloy that allows different types of surface finishing on it such as painting, plating, etc.
- The dimensional stability of Zamak 3 is excellent and so the castability of this alloy is outstanding.
- Zamak 3 alloy is a recyclable alloy so it does not harm the environment.
- The vibration attenuation and damping capacity of the Zamak 3 alloy are excellent.
- It has high impact, wears, and corrosion resistivity.
- Zamak 3 casting molds have higher durability than aluminum casting. For this reason, they offer longer service life than aluminum.
- The Zamak 3 alloy is suitable for both small and mass production.
- This alloy does not harm the air in the environment by dispersing any harmful substances.

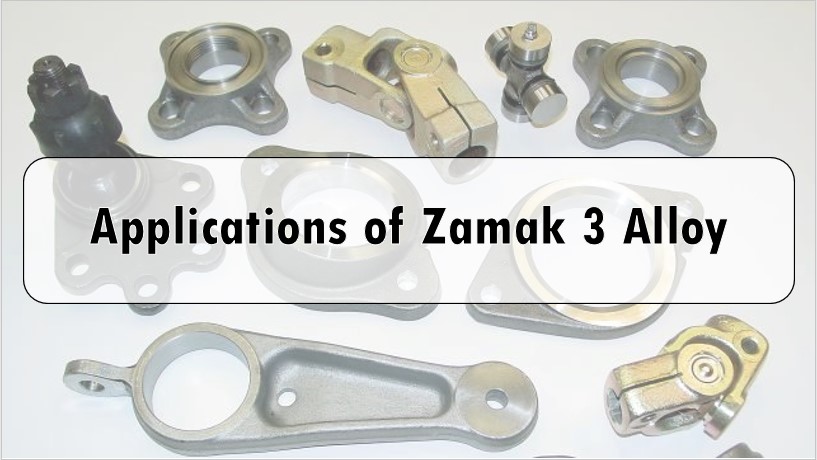

What Are the Applications of Zamak 3 Alloy?
The Zamak 3 alloy is used in many industries for making die casting components. Here a re some of the most highlighted applications of this alloy are:
Automotive Industry
In the automobile industry, there are many components such as forklift parts, car doorknobs, etc. that are made of Zamak 3 alloy.
Plumbing Fittings
Manufacturers use this alloy to make bibcock, hose bibb, faucet, valve, casting pipe, and many other plumbing fittings.
Toy Industry
In the toy industry, the Zamak 3 alloy is used to make action figures, miniature cars, or components for other toys.
Others
Aside from the above applications, this alloy is suitable for making furniture accessories, handles, ornaments, zippers, mechanical parts, etc.
What Are the Different Standards for Zamak 3 Alloy?
The Zamak 3 alloy has many names based on country or standard. The below table shows these different names of this alloy:
| Traditional Name | Zamak 3 |
| Short Composition Name | ZnAl4 |
| ASTM | AG 40A |
| Common | Alloy 3 |
| China | ZX01 |
| JIS | Ingot type 2 (ingot), ZDC2 (Alloy) |
| Short European Designation | ZL0400 (ingot), ZP0400 (Alloy) |
| Germany DIN 1743-2 | Z400 |
| France NFA 55-010 | Z-A4 |
| UK BS 1004 | Alloy A |
| UNS | Z35521 (ingot), Z33520 (Alloy) |
