The Zamak 5 aka ZL0410 alloy contains 96% zinc with aluminum just like Zamak 3. But it also contains 1% of copper. Copper helps to increase the hardness, strength, and corrosion resistivity of this alloy. But it decreases the ductility. The list below shows all the components of the Zamak 5 alloy:
- Aluminum (Al): 3.8%
- Copper (Cu): 0.7 – 1%
- Nickel (Ni): 0.001%
- Silicon (Si): 0.02%
- Tin (Sn): 0.001%
- Cadmium (Cd): 0.003%
- Iron (Fe): 0.02%
- Lead (Pb): 0.003%
- Magnesium (Mg): 0.04%
The properties of this alloy are categorized into physical and mechanical properties.
Zamak 5 Physical Properties
The properties that show a component’s physical state are the physical properties of that component. There are many physical properties of a component such as density, mass, melting and boiling points, specific heat capacity, thermal conductivity, coefficient of friction, electrical resistivity, etc. The below table shows the physical Zinc 5 properties:
| Properties | Values |
| Density | 6.60 gm/cm3 |
| Melting Point | 383oC |
| Electric Resistivity (20°C) | 6.54 μΩ-cm |
| Thermal Conductivity | 0.109 KW/mK |
| Thermal Expansion Co-efficient | 27.4 μm/m-°K |
| Latent Heat of Fusion | 110 J/g |
| Friction Co-efficient | 0.08 |
| Specific Heat | 419 J/kg-°C |
Zamak 5 Mechanical Properties
The properties that show a material’s reaction against applied load are the mechanical properties of that material. A material can have various mechanical properties such as impact strength, tensile strength, modulus of elasticity, shear strength, yield strength, hardness, elongation, etc. The below table shows the mechanical Zinc 5 properties:
| Properties | Values |
| Tensile Strength (Ultimate) | 328 MPa |
| Impact Strength | 65 J |
| Yield Strength | 228 MPa |
| Yield Strength (Compressive) | 600 MPa |
| (Fracture) Elongation | 3.6% |
| (Fmax) Elongation | 2% |
| Shear Strength | 262 MPa |
| Fatigue Strength | 57 MPa |
| Modulus of Elasticity | 84.5 GPa |
| Hardness | 91 Brinell |

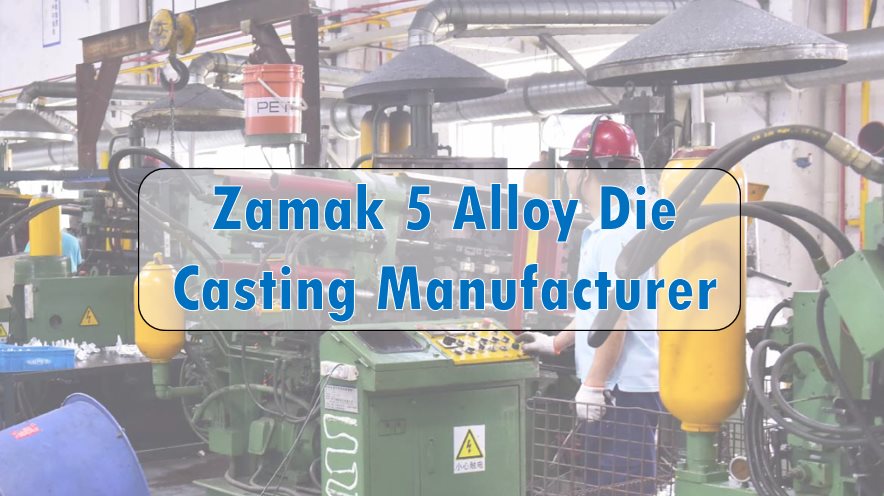

Chinese Zamak 5 Alloy Die Casting Manufacturer: Sunrise Metal
Sunrise Metal has been producing casting parts for over a decade for clients both in China and in other countries. In our facilities, we have advanced Zinc 5 casting equipment including hot chamber die casting equipment. We use machines that have up to 250T clamping force to accomplish challenging Zinc 5 die casting jobs.
We provide the following services for Zamak 5 casting projects:
Rapid Prototyping
The rapid prototyping service helps in creating a demo Zinc 5 casting part that we use for testing. After the part passes all the tests then we go to mass production. In this service, we have long experienced engineers and workers.
Die Casting Tooling
We have expert mold designers in our facilities. They utilize the latest mold flow simulation technologies using various software such as Anycasting, AutoCAD, CREO, etc. For this reason, our Zamak 5 casting mold fabrication and manufacturing parts become more precise.
CNC Machining
We have the latest 3-Axis, 5-Axis, and 7-Axis CNC machines for CNC machining of Zinc 5 casting parts. This helps to give accuracy to the dimensions of the Zamak 5 alloy parts.
Surface Finishing
We provide various types of surface finishing services for Zinc 5 casting parts such as chromate coating, powder coating, liquid painting, laser carving, anodizing, etc. We have high-level test labs to inspect the Zamak 5 casting parts from raw material to finished goods.
So, these are the various types of services that we provide for Zinc 5 alloy casting parts. If you wish to have these services contact us via email or phone number.
What Are the Advantages of Zamak 5 Alloy?
Due to the Zinc 5 properties, it has a lot of advantages to offer, for example:
- This alloy has a great strength-to-weight ratio. That means it is suitable for making casting components that need to be lightweight but should be able to withstand great impact.
- Zinc 5 casting parts show lesser defects than most other metal or metal alloy casting parts. For this reason, the cost of post-processing reduces a lot.
- Using this alloy will help to avoid many problems caused by other metal alloys. For example, magnesium alloy has fire hazard problems, aluminum alloy has leakage problems, etc. which are avoidable by using the Zinc 5 alloy
- This alloy has a very good plastic deformation property which allows easy machining, shaping, forming, of casting parts.
- The Zinc 5 alloy has higher strength, hardness, and resistivity to corrosion than most other alloy metal which is very useful for making certain casting parts.

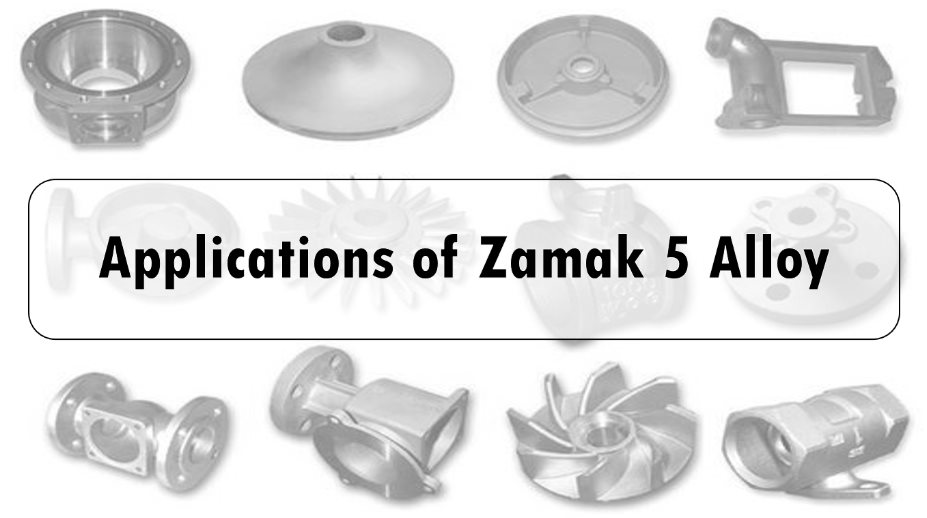

What Are the Applications of Zamak 5 Alloy?
The Zamak 5 alloy is used in many industries such as:
- In the automobile industry, this alloy helps to make many parts such as clutch, metal shaft, gear changer, etc.
- Many sanitary fittings such as shower handles, towel brackets, etc. are made of the Zinc 5 alloy.
- In different industries, nuts, bolts, screws, etc. assembly parts are required which are made of the Zinc 5 alloy.
What Are the Differences Between Zamak 3 and Zamak 5 Alloy?
The differences between these two alloys are listed in the table below:
| Zamak 3 | Zamak 5 |
| Consists of 96% Zn and 4% Al | Consists of 96% Zn, 3% Al and 1% Cu |
| Strength lower than Zamak 5 | Strength higher than Zamak 3 |
| Hardness lower than Zamak 5 | Hardness higher than Zamak 3 |
| Corrosion resistivity lower than Zamak 5 | Corrosion resistivity higher than Zamak 3 |
| Ductility higher than Zamak 5 | Ductility lower than Zamak 3 |
What Are the Different Standards for Zamak 5 Alloy?
The Zinc 5 alloy has many names based on country or standard. The below table shows these different names of this alloy:
| Traditional Name | Zamak 5 |
| Short Composition Name | ZnAl4Cu1 |
| ASTM | AC 41A |
| Common | Alloy 5 |
| China | ZX03 |
| JIS | Ingot type 1 (ingot), ZDC1 (Alloy) |
| Short European Designation | ZL0410 (ingot), ZP0410 (Alloy) |
| Germany DIN 1743-2 | Z420 |
| France NFA 55-010 | Z-A4UI |
| UK BS 1004 | Alloy B |
| UNS | Z35530 (ingot), Z35531 (Alloy) |
