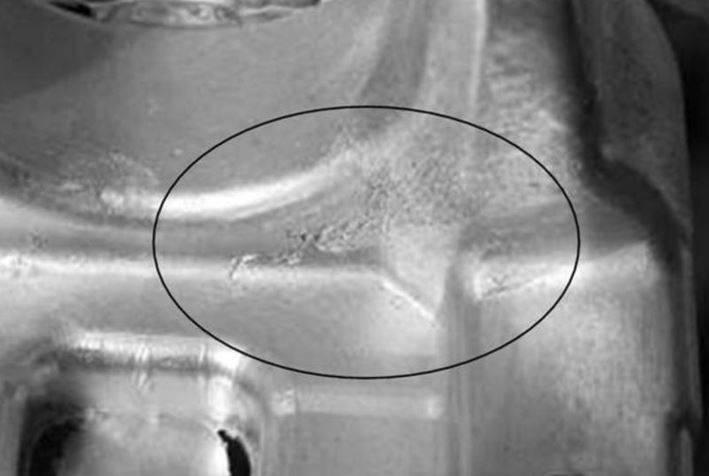

Cold shuts in die casting is visible surface defects in the form of discontinuity. It’s characterized by irregular, sunken, noticeable, and almost straight lines. The shape is mostly narrow and small, with or without broken junctions and edges.
Cold lap point is another name for this defect, exclusively in pressure die casting. A thin or fine foliation cleavage on the surface indicates its presence. These linear cracks primarily occur far from the gate, especially in aluminum die-casting alloys. Die-cast parts with cold shuts are often subjected to rejection due to poor usability.
This article briefly points out the causes, effects, and remedies of this casting surface defect.
Causes of Die-Casting Cold Shuts
Premature solidification of molten metals/alloys during casting is the ultimate reason behind a cold shut. However, several sources contribute to this physical change in the process –
- Low Temperature –Low mold temperature, as well as low temperature of the molten alloy/metal, causes surface disruptions.
- Poor Fluidity –The molten liquid must, with insufficient fluidity, fail to keep up with the combination, leading to surface cracks.
- Inferior Fusion –Filling the liquid metal/alloy in separate runners disrupts the flow uniformity to hinder mold fusion.
- Improper Design –Poor, incorrect, and faulty gate design often interferes with liquid flows to trigger distant cold shuts.
- Processing Issues –Compromised exhaust, lower filling speed, and extensive filling time lead to faulty stream combos.
- Inner Pressure –Minimal to no permeability to gaseous impurities builds up pressure to decelerate or retard the molten flows.
Effects of Cold Shuts in Casting

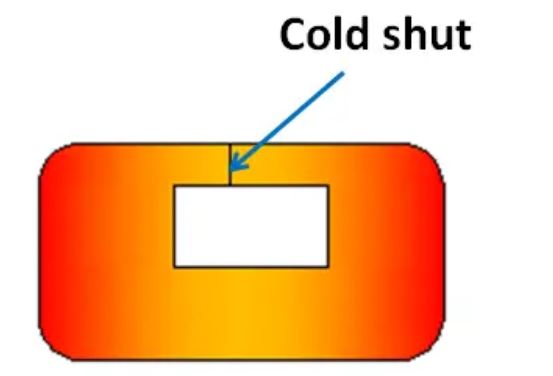

Though cold shuts should appear on the surface level with considerable thickness, they can happen slightly below the exterior with such thickness. As the defect mostly appears thin or fine, many intentionally neglect the problem. But it can prove to be fatal as the defect continues to grow.
Thus, serious structural failure will happen at times. The most famous case of failure due to cold shuts concerns the Liberty Bell crack in 1846. It started as a hairline fracture, which led to the unaidedly visible crack. Also, repairing or recovering die-cast cold shuts is difficult to achieve.
Preventing Cold Shut in die-casting
General measures to avoid cold shut defects in casting include –
- Increase in Temperatures –Setting the right temps for the mold with sufficiently hot molten alloy/metal interrupts premature solidification. Distinctive liquid streams get more time to combine/unite with one another.
- Perfect Chemical Composition –The alloy composition greatly influences its fluidity in molten conditions. Ensuring the required composition effectively increases this property, allowing streams to flow rapidly.
- Improved Casting System– Adjusting the filling specs, gating system, and exhaust specs to the right dials and counts can push the casting process. It helps the different gates to maintain uniformity across the casting.
- Superior Overflow Conditions –Even the standard overflow conditions may not consistently deliver the best outcome. Establishing superior support by improving its conditions and stream has proven more beneficial.
- More Pressure and Speed –Increasing the interior gate speed and the injection speed lets the gas impurities shoot out. Implementing additional pressure initiates the same effect, speeding up the molten streams.
Temperature and fluidity are the two key factors in causing a cold shut in die-casting alloys. Taking precautions based on the abovementioned countermeasures can eliminate the possibility of cold shut defect to occur.
