Leakers primarily refer to defective castings that leak molten liquid or entrapped air/gas. It concerns the leakproof segment of die casts without any potential leakage. However, this is more like an improvised form of shrinkage-based defects in die casting metal alloys.

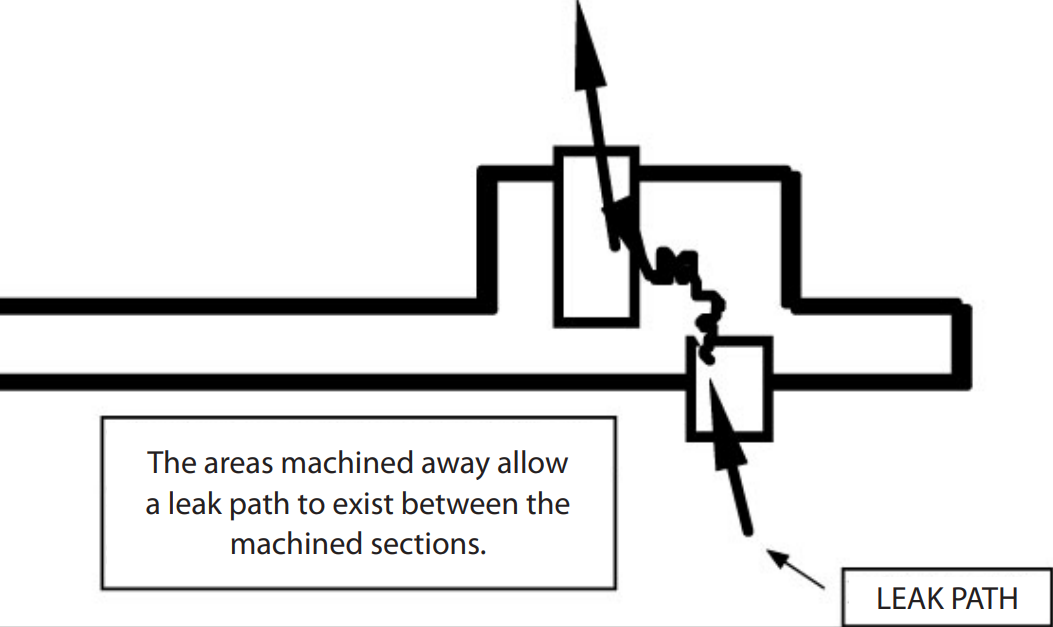

Many experts and manufacturers consider these leakers as a manifestation of the casting solidification. Shrink porosity tends to open up leakage paths across the entire casting section. And those paths barely feature any regularity in shape or specific spots on the cast.
The formation of leakers in die-cast parts must be avoided to maintain optimum casting performance. This comprehensive article dives into the source, effects, and remedies of leakage paths.
Mechanism of Die Casting Leaker

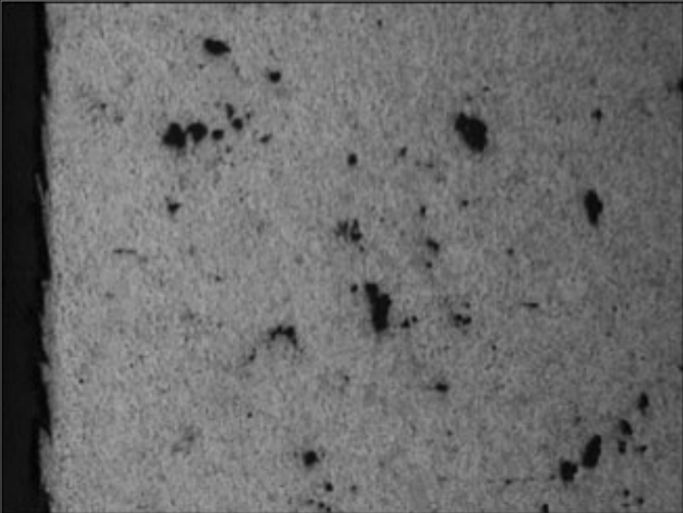

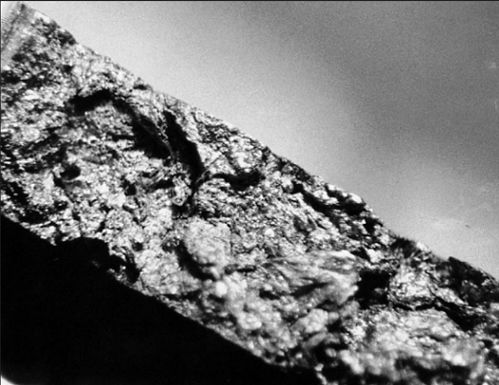

Shrinkage remains at the bottom of pores, making shrinkage porosity equally responsible for leakers. Also, the presence of shrinkage porosity often reveals the adjacent spots to be porous. Regardless of the pore size and visibility, they provide the escape paths for trapped gas/liquid.
The extent of porousness depends on casting shapes, solidification temperatures, and existing pressure. Solidification of the adjacent spots to shrink porosity develops dendritic formation. It features sufficient empty dendrite spaces to let the gas or liquid make it through the atmosphere.
Sources of Leakers in Die Casting
The leading reasons to initiate leakers in die-casting alloys include –
| Gaseous Contents | Gaseous constituents more or less accompany the molten metal during casting. Aluminum casting alloys with hydrogen (H) gas lead to shrinkage and leakers. |
| Error in Runner Direction | Opening the runner toward the less-dense or light-flow direction hinders uniformity. It often hampers the mold quality while reducing the overall airtightness. |
| Imperfect Design | Air holes, cold zones, and shrinkage holes develop and grow in erroneous castings. The involved equipment struggles to deliver an evenly precise process, causing leakers. |
| Too Much Spray | A manually determined dosage can result in excessive or extended spraying. It triggers mass evaporation of spray constituents to contribute to the leaker’s formation. |
| Rapid Solidification | Filling the cavity at faster speeds than necessary develops shrinkage. This triggers rapid solidification, affecting the dense alloy layer structure in favor of leakers. |
| Oxidized Inclusions | Excessive oxide layers within the pressure chamber set a partition wall in casting. And leakers become likely to affect the die casts under heavy pressures applied to parts. |
| Insufficient Injection | Lack of the molten alloy necessary to fill the entire chamber leaves empty spots. The confined gas/air causes turbulence, leading to leaker-inducing pores. |
However, it’s essential to recognize the shrinkage porosity distinctively from gas porosity. The latter is independent of shrinkage, with no porous regions surrounding the bubble.
Effects of Leakers
Likewise, defects like leakers may seem like negligible surface flaws unless heavier defects start affecting them. Some of the well-recognized negatives to hit the die-cast in the long run include –
- Poor aesthetics with visible pores.
- Further worsening of inner flaws.
- Compromised structural integrity.
- Reduced industrial productivity.
- Eventual extension of crack lines.
- Higher vulnerability to breakage.
- Excessive cost with new castings.
Preventive Measures for Die Casting Leaker
A flawless die-casting process is the most convenient, straightforward, and beneficial way to address leakers. The most intuitive precautions include:
● Operational Method
There are different stages in the entire die-casting process. And every phase requires a precise implementation to achieve the desired output. Upgrading the operational method based on the casting specs can help avoid leakers.
● Purity of Molten Alloys
Gas impurities accompanying the molten alloy must remain minimal. More purity, regarding gaseous constituents, eliminates the entrapment-release cycle. It reduces chemical activities due to the presence of hole-inducing gas.
●Casting Equipment
Every parameter related to the casting should be selected and used through proper calculations. Perfect adjustment of the casting equipment minimizes nearly all sorts of defects. It also includes shrinks, the main reason behind leakers.
● Mold’s Gating System
Gating arrangements are significant in having perfect die casts. The molten alloys should hit the blind spots to create a roll-up vortex upon returning. It reduces shrinkage porosity to diminish potential leaker’s occurrence.
● Machining Control
To avoid superfast solidification, the cavity requires filling at suitably quick speeds. A balanced temperature control allows the heat-transferring process to be uniform. Thus, it effectively lessens the chances of leaker holes affecting the surfaces.
● Pressure Chamber Filling
Injecting a sufficient quantity of molten alloys into the pressure chamber should fill all kinds of voids. It helps with the immediate removal of entrapped gases within the chamber. So, the development of leakers becomes highly unlikely.
It’s difficult to fix or recover the damage from leakers halfway through the process. Taking random steps may plunge the overall workability and acceptance of the die-cast. So, pre-casting prevention is the right way to allow the shrinkage pores to establish leakage paths.
