Advancements in technology have popularized aluminum alloy die casting in modern automobile and machinery manufacturing. From aerospace to consumer electronics, the shift is toward new die casting methods over traditional stamping. Precision is vital in metalworking, where even a slight temperature change can compromise a component, leading to considerable costs. Mold temperature controllers have become essential tools in this industry to maintain this precision. In this article, we’ll explore mold temperature controllers and offer maintenance tips. Let’s dive in.
Mold Temperature Controllers –
What are They?

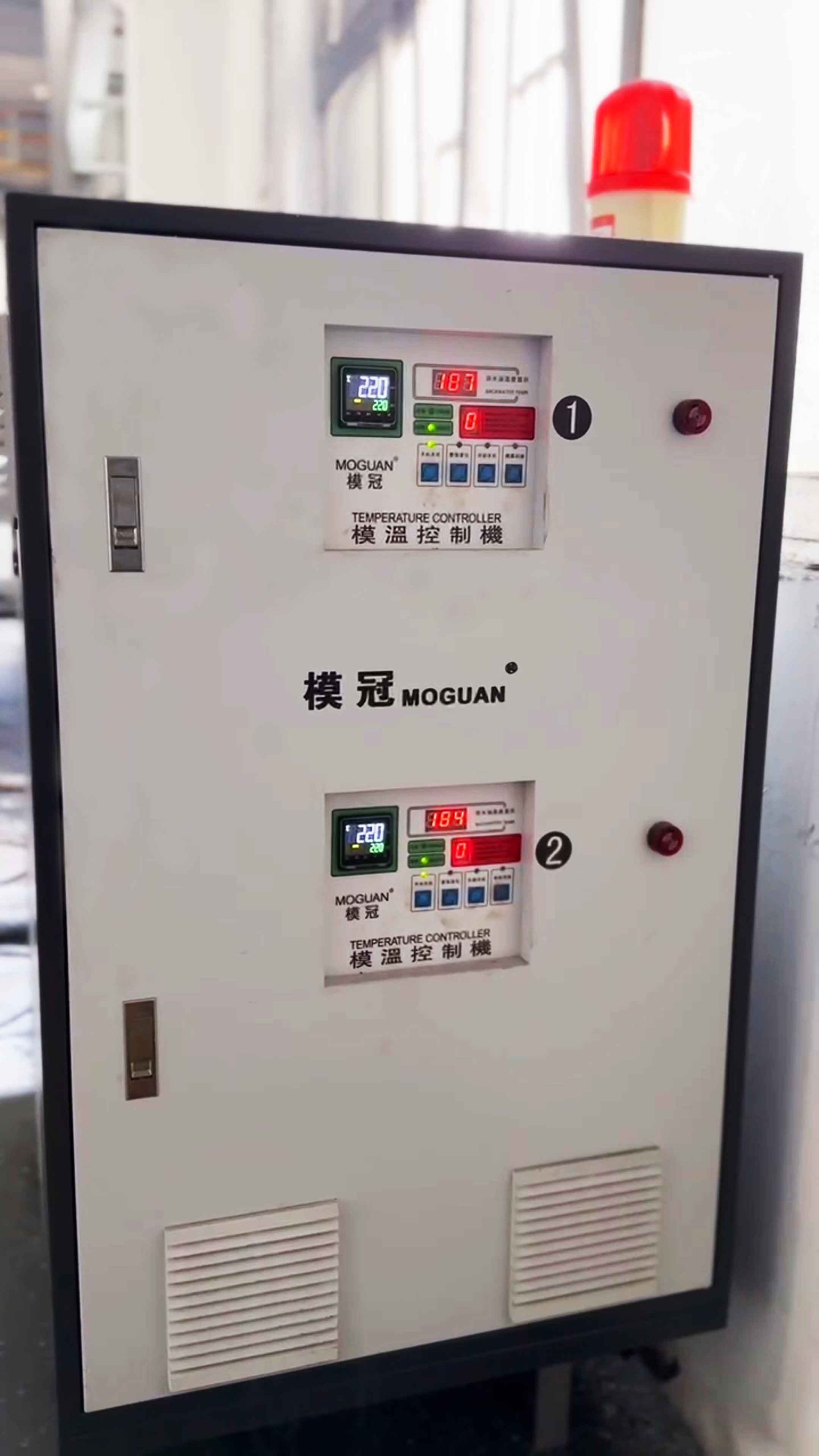

Mold Temperature Controllers, or MTCs, are indispensable devices that regulate and maintain mold temperatures at precise levels. These devices work for both heating and cooling purposes and produce high-quality and precise products.
Mostly used in plastic or metal molding, mold temperature controllers regulate the cold or hot temperature of a mold by circulating a heated or cooled fluid through the mold. Whether you’re manufacturing automotive components, consumer electronics, or aerospace parts, this method ensures consistent product quality and performance.
How Does a Mold Temperature Controller Unit Work?
A mold temperature controller unit has a heating and a cooling unit. These units are filled with a heated or cooled fluid, which regulates the temperature of the mold at the desired set point. The unit has a temperature sensor inside it. When it sends a signal to the controller, the mold temperature is compared with the set point temperature. If there is a temperature difference, the controller activates the heating or cooling element (whichever is required) to optimize the temperature. While the heating unit circulates hot oil or water to raise the temperature, the cooling unit cools the mold down by circulating cold water or oil.
Benefits of Using the Mold Temperature Controller in Aluminum Die Casting
1. Improves Product Quality
It is possible to distribute uniform temperatures throughout a mold with the help of mold temperature controllers. It ensures a high product output with little to no defects like porosity and shrinkage.
2. Reduces Cycle Time
By controlling mold temperatures precisely, mold temperature controllers enable faster cooling.
The accelerated cooling process makes your operations faster with shorter cycle times. It boosts your overall production efficiency of the aluminum die casting process, saving up money, energy, and other resources.
3. Enhances Energy Efficiency
When you use traditional aluminum die-casting methods, you might not have precise control over temperature. It might lead to excessive heating, which causes overconsumption of energy. Fortunately, mold temperature controllers offer you precise control over temperatures. Thus, there is no event of overheating, which prevents unnecessary energy wastage.
Moreover, the mold temperature controller cuts down the preheating or after-cooling time. As a result, there is little to no idle time between two manufacturing processes, resulting in optimum energy and time efficiency.
4. Extends Mold Life
With fluctuations in temperature, molds get exposed to thermal stress. It can lead to cracks, wear and tear, and other types of damage. Mold temperature controllers eliminate the possibility of such damages as they are consistent at temperatures. It helps in preserving the structure of the mold. As a result, you save money on maintenance costs and mold replacement.
Water Mold Temperature Controller or Oil Mold Temperature Controller – Which of the Two Makes the Best Choice?
Mold temperature controller units are of two types:
- Water mold temperature controllers
- Oil mold temperature controllers
In regards to die casting, both of the aforesaid MTCs are known to be effective at reducing machine costs for injection molding. However, they bear some basic differences. Let’s take a look at them –
Water Mold Temperature Controller – Overview
As is obvious from the name, the water mold temperature controllers utilize water as a heat transfer medium.
This MTC system is equipped with stainless steel piping and comes with a direct or indirect cooling option. Mostly used for plastic and metal molding processes, it is best suited for products that require lower to moderate temperatures.
As high-temperature water is moved back and forth between the mold and the controller, energy efficiency is improved.
Characteristics of Water Mold Temperature Controller
- Maximum use temperature – 40°C-120°C, accurate ± 1 ° C
- Easy microcomputer touch control operation
- Automatic boot exhaust
Oil Mold Temperature Controller – Overview
The oil mold temperature controller finds utility in a number of industries. It uses oil or synthetic oil as the medium and a heat transfer fluid. With an indirect cooling design, they are ideal for products that require higher temperature controllers.
In this process, the heat transfer oil enters the system from the oil storage tank. It is then directed to the temperature-controlled mold through a circulation pump.
Characteristics of Water Mold Temperature Controller
- A touch-sensitive display for internal storage, automatic calculation, and precise and reliable temperature control within ±2 °C
- Faster heating and cooling time and relatively stable temperature
- High-quality, long-lasting imported components
How to Measure Mold Temperature Controllers?
If you are aiming to regulate product quality, you must measure the effectiveness of your MTC unit. Here are the most popular ways to do it：

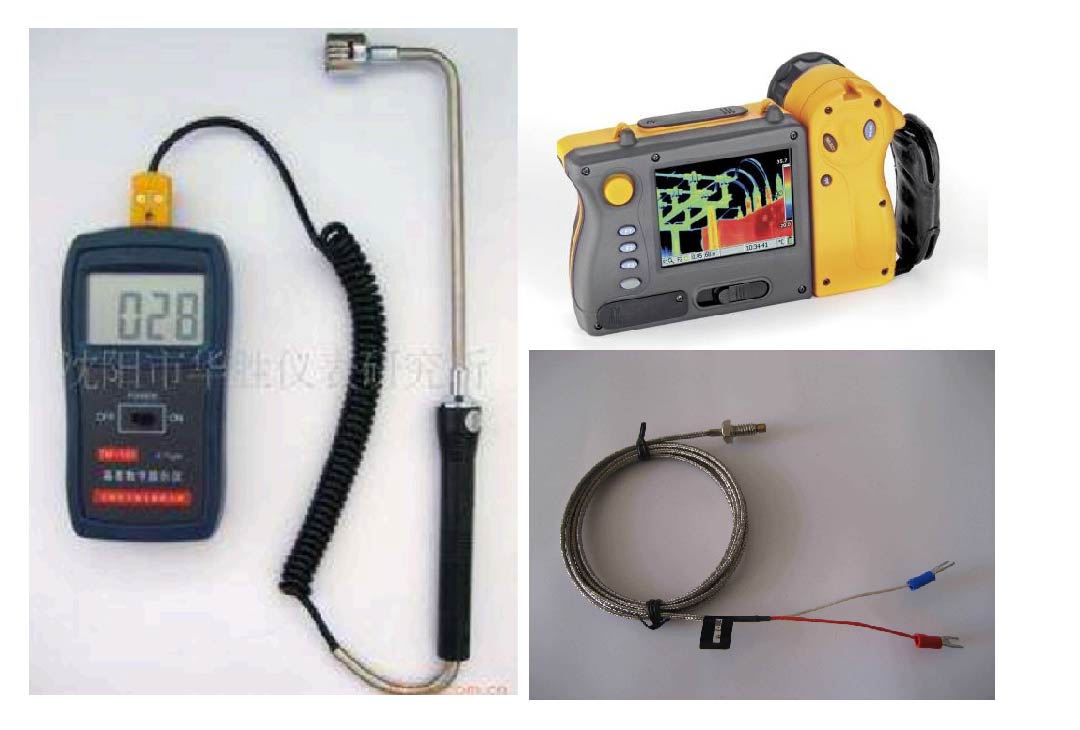

- Use contact thermometers to measure the mold temperature. You can place them directly on the mold surface.
- If you want to measure the temperature of the mold at various touchpoints, use thermocouples or infrared thermometers. Remember to keep them consistent throughout the process to get accurate results.
- If you need to measure the temperatures at a specific depth of the mold, insertion thermometers are an ideal choice.
Important Mold Temperature Controller Maintenance Tips
- Regularly inspect for leaks and physical damages. Also, check for any abnormalities in the device.
- Maintain the quality of hot and cold fluids and keep them free from contaminants.
- Keep the parts of the mold temperature controller, such as valves and pumps, lubricated.
- Schedule preventative maintenance at regular intervals to keep the controller smooth and running.
Conclusion
In the world of manufacturing, mold temperature controllers are a high-quality investment. Whether you opt for an oil-based unit or a water-based unit, you can expect higher production quality, improved energy efficiency, and precise control over mold temperatures.
If you’re looking to enhance the manufacturing processes at your facility, invest in high-quality die-casting tools and machinery. Don’t be concerned with what to purchase — Sunrise Metal, a leading aluminum die-casting manufacturer in China, has got you covered with reliable die-casting toolings and aluminum die-casting. Request a quote today to get cost-effective die-casting tools and components.
