Chamfer and filler are used to design edges where surfaces meet and ease sharp corners and edges. The fillet creates a smooth curve, whereas a chamfer changes the slope of the edge. In this way, they can minimize stress concentration as they transmit forces across large surface areas. This helps create durable parts. In this post, you will learn the difference between a chamfer and a fillet.
What is a Fillet?
A fillet is a round section created on the outside or inside of the corners or edges. It can either be convex or concave. A fillet is necessary to minimize stress concentration on a given surface. By distributing stress on a larger surface area, it slows down the rate of deformation. Other than minimizing stress concentration, they help prevent possible injuries caused by handling sharp parts. The fillet is common in joints that are either welded or soldered.
Is the Fillet Necessary?
The fillet minimizes stress concentration by changing the direction of the part. Also, it increases the fatigue life and load-bearing capacity of the part. You will find the fillet to be quite effective at minimizing stress concentration on a given surface. In addition, the fillet enhances the aesthetics of the part or component by getting rid of sharp corners.
What is a Chamfer?
A chamfer is the opposite of a fillet. It has an angled or sloped corner on the outside or inside of a part. The chamfer helps prevent the edges of a component from being damaged. Although the chamfer minimizes stress concentration, it does not distribute it as the fillet does. Rather, it directs stress in a single direction.
Why is the Chamfer Needed?
A chamfer is required to ease sharp corners and edges. This makes assembly of parts easier. For instance, both male and female components can fit easily during assembly. By creating different chamfers, you can meet the needs of various industrial applications. Some of the tools used to make a chamfer include a spot drill and a chamfer tool.
Fillet Vs. Chamfer – Differences

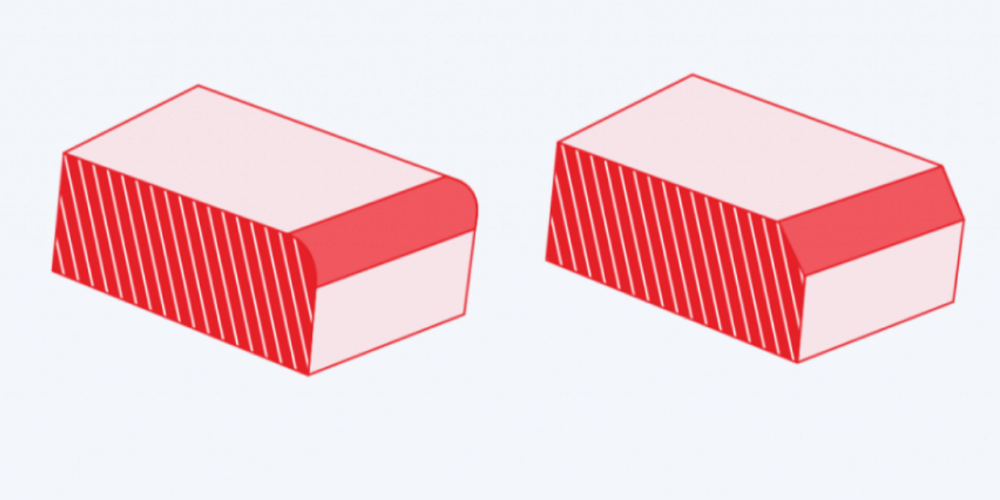

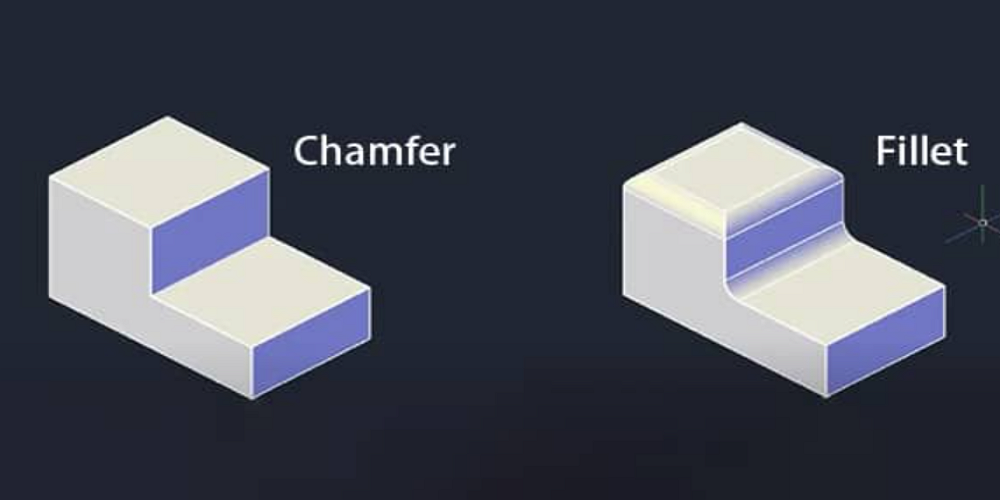

The primary distinguishing feature between a fillet and a chamfer is the shape. The chamfer has an angled slope, whereas the fillet has a round corner.
These are some of the features that distinguish the fillet from the chamfer:
● Safety:
The chamfer has sharp edges that can cause injuries when handling the part. For safety purposes, it is advisable to choose a fillet as it is safer to handle.
● Use:
Fillets are mainly used in internal features, whereas chamfers suit external features. Also, chamfers are used where holes are required.
● Cost:
Chamfers are cheaper than fillets.
● Machining time:
It is easier to process a chamfer due to its shape.
● Coating:
Since the chamfer has sharp edges, the coating can easily peel off. Therefore, for coating, always choose a fillet.
● Stress concentration:
A fillet distributes stress over a larger surface to prevent component damage or deformation. On the other hand, a chamfer concentrates stress in a given direction, which can result in deformation.
● Cutting tools:
A single tool can be used to make different chamfers. However, to make fillets, you require a multitude of special tools.
Fillet Vs. Chamfer – How to Choose
Although fillets and chamfers are distinct, machinists face challenges when selecting the right one. If you choose the wrong one, you negatively impact the efficiency of the part and increase the machining cost. In addition, if a fillet is used where a chamfer is required, it will compromise its lifespan and vice versa. By considering the following factors, you can choose a fillet or chamfer where it is required.
Safety
The fillet does not have sharp corners and edges, but a chamfer has a slope. It does not matter the angle of the slope; a chamfer will have sharp corners. As a result, a fillet is suitable for minimizing stress concentration on a part. Also, the performance of a fillet is higher than that of a chamfer.
Stress Concentration
A fillet is designed to distribute stress over a larger surface area, whereas the chamfer directs it in a single direction. If your aim is to avoid part deformation, then you should choose a fillet.
Budget
When it comes to cost, the chamfer is cheaper than the fillet. If special features are not needed, then a chamfer is preferred to a fillet. The cost is based on machining time, ease of machining, and tools required.
Aesthetics
Other than reducing stress concentration, fillets and chamfers enhance the appearance of a component. For industrial designs, fillets are widely used because they make parts more attractive.
Manufacturing Process
When deciding whether to use a chamfer or a fillet, you need consider your manufacturing processes. For instance, with a single tool such as a spot drill, you can create different types of chamfers. Producing a chamfer is easier and less time-consuming as compared to a fillet. Fillets improve the overall material flow and are suitable for injection molding and die-casting processes.
Part Assembly
When it comes to assembly, the chamfer is preferred, but you must avoid interference. You can achieve this by ensuring the external chamfer is larger than the inner chamfer or fillet. This is also the case with the external chamfer.
Application
You need to pay attention to the application of the chamfer or fillet. For instance, a chamfer is the better option if you are creating a hole for inserting a driving screw or pin. If you are concerned about rust, then you should select the fillet. With a fillet, you can coat your part with paint, powder coating, or anodizing. The sharp edges of chamfers can peel off the coating, reducing their resistance to rust and corrosion.
