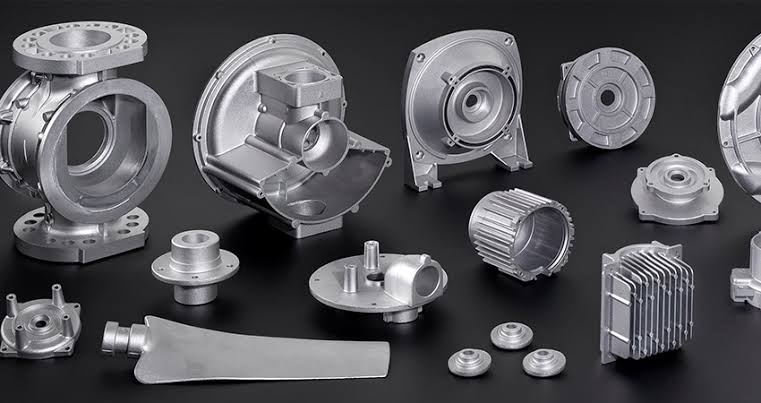

In the industrial process known as aluminum die casting, molten metal is pressed firmly into a mold cavity. The molten metal quickly hardens to create a high-quality, highly accurate, valuable item in various sectors.
Design to Production of Aluminum Parts Using Die Casting
1. Design
Since it serves as the starting point for the entire production process, design is a vital first stage in the die-casting procedure for aluminum parts.
The design impacts the equipment and production processes needed to make the item by determining its size, shape, and feature requirements. CAD software or the development of a physical prototype can be used to accomplish this.
When designing an aluminium part in die casting, it is crucial to consider details like draft angles, wall thickness, ribs, caps, edges, curves, gating and undercuts. Each of these design components impacts the part’s quality and manufacturability.
During the planning phase, engineers can optimize the item for mass production and ensure it complies with the necessary performance criteria by considering the unique characteristics of aluminum and the die-casting procedure.
2. Mold Design
A mold needs to be created after the part design has been finalized since the final product’s quality and uniformity greatly depend on the mold design.

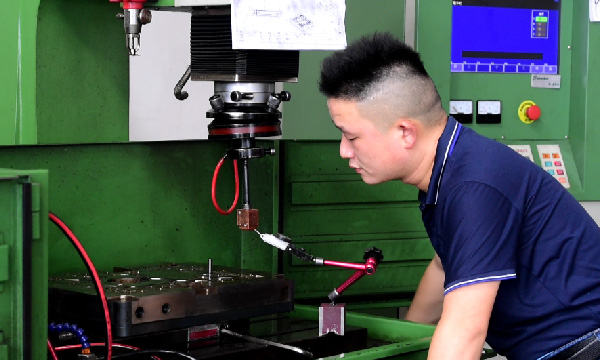

3. Mold Construction
Mold fabrication begins after the mold design phase is finished. Generally, a mold is constructed of two parts, each with a void that is the exact opposite of the intended part.
The machine on which the two pieces are placed infuses the molten material into the cavity. Various elements, such as copper, aluminum, and steel, can create a single mold.
The molten metal’s high temperatures and pressure must not damage the mold. Also, the mold must be simple to open and close to remove the part after the final casting. Strong materials that can survive wear and corrosion are often used to create molds to endure these conditions.
The mold must be checked after it has been constructed to confirm that it creates parts that adhere to the necessary criteria.
4. Melting
In the casting cycle of a furnace, the aluminum is melted and then moved to a storage furnace. The holding furnace maintains the temperature of the aluminum and continuously supplies molten metal to the die-casting device.
5.Die-casting
Under enormous pressure, the molten metal is pumped into the mold. The high pressure also ensures that a single cavity in the mold is filled with material and that the final product will have uniform dimensions and attributes.
6. Cooling
The aluminum is solidified by cooling the mold with water or oil. The mold’s two sections are split apart when the liquid metal in the component cools, and the portions are extracted.
7. Finishing
The final part might need additional finishing procedures like trimming, shaving, or surface treatment To eliminate excess material or enhance the item’s appearance.
8. Inspection
Inspection is vital in the die-casting aluminum casting process to guarantee that the aluminum components satisfy the necessary quality requirements, adhere to industry standards, and boost consumer satisfaction.
Many instruments, including coordinates measurement machines (CMMs) and automated visual methods, inspect the final product for flaws or dimensional irregularities.
Cost Considerations of Aluminum Die-Casting Parts in Production
Producers should consider several cost factors while producing aluminum die-cast parts.
The following outline a few of the significant variables that can impact how much it costs to produce these parts:
l Material Cost
One of the leading manufacturing cost factors for a die-casting machine is the price of aluminum alloy materials. Materials made of aluminum alloys can change in price depending on global demand and supply. As a result, it’s critical to select the appropriate element based on your objectives and the cost of the alloy on the market.
- Tooling Cost
Another significant cost factor is the cost of the tools used to produce the components for aluminum and die-casting machines. Die-casting tooling can be costly since it takes skill to make the highest tools that will yield accurate and consistent parts.
- Labor Cost
Another vital consideration is the labour cost, including the specialized personnel needed for designing, material handling, and quality inspection.
l Energy Cost
Since the die-casting manufacturing process requires a lot of energy, the price of electricity significantly impacts how much it costs to produce aluminum die-cast parts. Therefore, regional power laws and renewable energy sources can dramatically affect production costs.
l Post-Processing Cost
Any required post-processing processes may also affect how much aluminum die-cast parts cost. The pieces may then be coated, machined, polished, or trimmed. These processes demand additional workforce and resources, significantly raising the final cost.
6 Advantages of Using Aluminum Die Casting Parts in Manufacturing
1. Lightweight and Strong
Because it is both light and sturdy, aluminum is the perfect material for creating parts that need to be solid and lightweight. Components made of aluminum die casting are typically 1/3 as heavy as ones made of steel while maintaining the same rigidity, higher durability and strength.
2. High Accuracy
Aluminum die casting produces extremely precise components with minimal to zero errors. It is because the die-cast mold can be created to produce elaborate designs and patterns that are hard or impossible to obtain using traditional production procedures.
3. Cost-Effective
Since aluminum is often a fairly priced metal, die casting is a suitable technique for creating parts in large quantities.
4. Versatility
Due to their ability to be produced in various shapes, dimensions, and grades, aluminum die-casting parts are perfect for a broad spectrum of uses.
5.Corrosion Resistance
The durability and lifespan of the finished product are increased by the aluminum die casting’s resistance to corrosion. Die-cast components can better survive adverse conditions and heat, moisture, and toxins exposure.
6. Recycling
Die-cast aluminum components are more environmentally friendly than many other building materials since they are reusable and recyclable.
Final Remarks
The process entails the above-mentioned phases and particular costs for producing complicated features and exceptional aluminum die-casting parts. Therefore, if you’re considering using aluminum in-cast metal parts for a particular application, it’s crucial to thoroughly analyze them to ensure you acquire the maximum benefits associated with the components.
