Achieving fluidity and reliability is crucial in aluminum die casting, as failure to do so can lead to porosity, causing adverse effects on both the product and its users. Preventing porosity in aluminum die casting involves understanding its causes and applying appropriate preventative strategies.
It is vital to recognize the properties of aluminum that contribute to its susceptibility to porosity. Aluminum’s soft and malleable nature allows easy casting into intricate shapes and sizes. Still, this malleability also increases the risk of air and gas pockets forming in the metal if not adequately heated and cooled.
Furthermore, aluminum die casting is frequently employed to produce thin and complex components, exacerbating the likelihood of porosity. Maintaining a consistent temperature throughout the casting process is essential to counteract this.
In essence, preventing porosity is crucial for ensuring the quality and performance of aluminum die casting. Manufacturers need to implement the necessary measures to safeguard their aluminum die casting products from porosity.
This article delves into how to prevent porosity in aluminum die casting. Let’s get started.
What Causes Porosity?
Several factors can contribute to forming porosity in aluminum die casting. Identifying the cause of porosity is essential to prevent it from occurring and produce the high-quality, defect-free casting.
Here is an overview of common causes of porosity in aluminum die casting:
- Moisture: If the mold or the molten metal contains moisture, it can vaporize during the casting process, creating gas pockets or voids within the casting.
- Air entrainment: When the molten metal is poured into the mold, it can trap air within the casting. Turbulent flow or improper gating and venting designs are the common causes of air entrainment in aluminum die castings.
- High-speed injection: Injecting molten metal into the mold at a high velocity can create turbulence, leading to air entrapment and porosity formation.
- Low melting temperature: If the melting temperature of the metal is too low, it can cause the metal to solidify too quickly, creating a lack of fusion and the formation of voids.
- Poor die design:The design of the die can also play a role in the formation of porosity. If the design is too complex or the mold needs to be adequately vented, it can form air pockets.
- Impurities: If the molten metal contains pollutants, such as oxides or other contaminants, it can form porosity.
- Improper casting conditions: If the temperature, pressure, or flow rate of the molten metal is not optimal, it can result in the formation of porosity.
Now that we have identified the common causes of porosity in aluminum die casting, the next question is how to prevent porosity in aluminum die casting.
Tips To Prevent Porosity in Aluminum Die Casting
Here are some tips to help you protect your aluminum die casting from porosity.
Controlling Temperature
When it comes to aluminum die casting, controlling the temperature is essential for porosity prevention. At the root of this need is the fact that temperature is the driving factor in the porosity of aluminum die casting.
As such, when temperatures are not properly managed, porosity can occur. This is why it is so important to control the temperatures throughout the entire die casting process.
One way to do this is by using efficient cooling systems. These systems can help regulate temperatures and maintain a consistent level throughout the entire process.
Additionally, using chillers can also help maintain an appropriate temperature. By using chillers, temperatures can be more accurately monitored and controlled which can dramatically reduce the chances of porosity.
Adjusting Lubrication
Proper lubrication helps maintain a consistent temperature, reduce friction, and provide a protective surface to prevent porosity from occurring. Inspecting and replacing lubricants is essential to ensure proper application regularly.
Additionally, using the proper lubricant can make a big difference, as there are a variety of lubricants available for aluminum die casting. Choose the lubricant based on the casting’s temperature, pressure, size, and quantity.
Furthermore, having the right amount of lubricant is essential for optimal performance. Too much lubricant can cause parts to stick, and too little can cause overheating and reduce the casting’s life span.
Controlling Gas Ingress
Gas can cause porosity in castings, leading to various problems, including causing porosity in aluminum castings.
But, with careful consideration, it is possible to reduce the risk of porosity. The key is to ensure that the holding furnace atmosphere is nitrogen-rich and to minimize the oxygen content.
It is also important to ensure that the correct pour temperature is used and that any other factors that might affect the atmosphere in the holding furnace are also controlled. Furthermore, it is essential to maintain the correct time for the die casting process.
Ensuring Proper Ventilation
When it comes to aluminum die casting, ensuring proper ventilation is essential for avoiding porosity in aluminum die casting. This is because the air trapped in an aluminum die cast component can cause small holes known as porosity to form.
To prevent this, manufacturers can use ejector pins, vents, and other techniques to ensure air exits the component before the molten metal solidifies. Manufacturers should also be aware of their die casting environment, as dust, debris, or moisture can contaminate the molten aluminum and cause porosity.
Adjusting Melt Quality
Adjusting the melt quality of their aluminum alloy protects parts from porosity. While many strategies are available for preventing porosity in aluminum die casting, understanding the underlying causes of porosity can help identify the right approach for your individual needs.
Porosity results from gas bubbles trapped within the molten alloy as it is injected into a die. This can lead to inconsistencies and defects in the final product, which can be costly and time-consuming.
Adjusting the alloy’s melt quality can help reduce the risk of porosity by controlling the amount of ventilation and temperature of the molten alloy. Additional strategies include using high-pressure injection, adding degassing agents to the alloy, and controlling the viscosity of the alloy.
Monitoring Pressure Release
When it comes to aluminum die casting porosity prevention, monitoring pressure release is critical. To ensure your parts are free from moisture and voids, it is essential to have a monitoring system in place that can detect any pressure irregularities and alert the operator immediately.
An effective monitoring system should include a pressure gauge and a switch. The pressure gauge should be placed on the casting machine and able to record the pressure levels in real time. This will alert the operator if the pressure is too high or low.
The pressure switch should be mounted on the die itself and set to the same pressure as the gauge. If the pressure exceeds the limit the switch sets, it will shut off the casting machine, preventing further damage.
Selecting Quality Alloys
When selecting quality alloys for aluminum die casting, the importance of ensuring that your alloy is free from porosity can’t be overstated. As an intricate manufacturing process that involves casting molten metal into a mold, porosity can create issues like fragile parts and poor surface finish.
To avoid the pitfalls of porosity, selecting the right alloy to suit your aluminum die casting needs is essential. After all, different alloys have different melting points and chemical compositions, so carefully considering the alloy is paramount for avoiding porosity.
For instance, an alloy with a higher zinc content can be ideal for a high-precision component, such as an automotive component, due to its strength and hardness. On the other hand, for a component that requires flexibility, such as a hand-held device, a lower zinc alloy is better suited.
Ultimately, selecting the right alloy can be the difference between success and failure regarding aluminum die casting porosity solutions.
Optimizing Tool Design & Maintenance

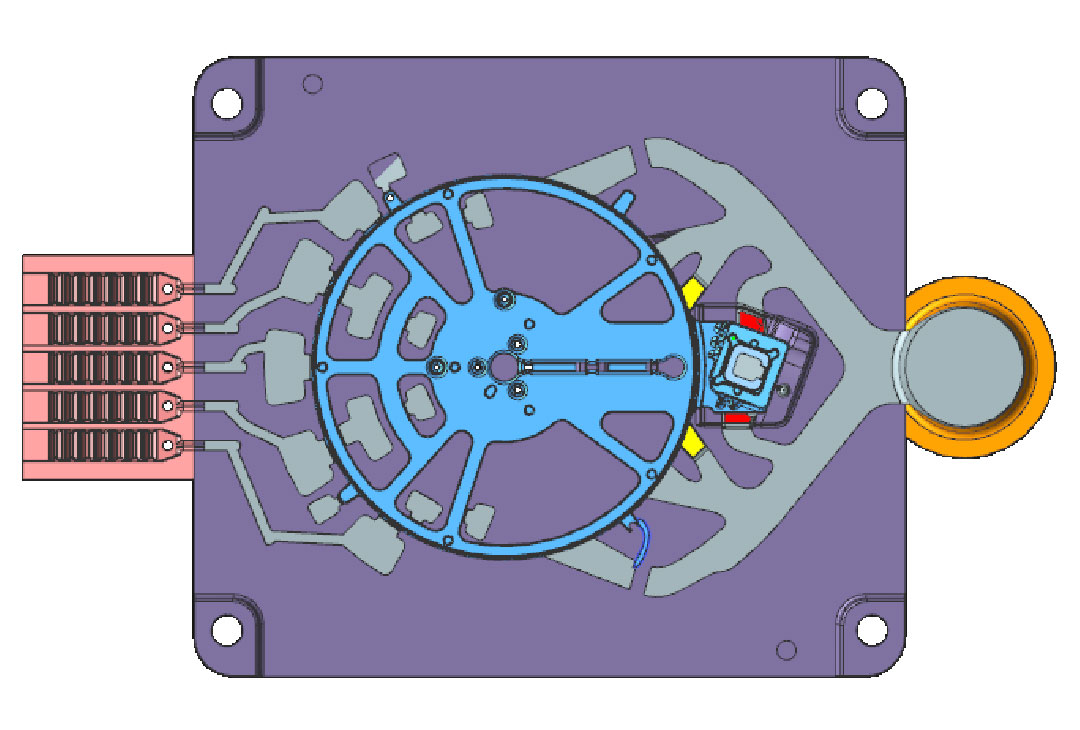

Massive-venting-techniqueOptimizing tool design and maintenance is crucial to protecting aluminum die casting from porosity. Still, some of the most common need to be corrected or incomplete venting, improper insulation of the die, too high a feed rate, and a poor die design.
Improper venting is a significant cause of porosity and can be prevented. The vents should be designed so air is not trapped and enough air can flow out of the die cavity.
It’s also essential to ensure the vents are properly insulated from the die, as this can help prevent cold spots from forming and causing porosity. Additionally, the feed rate should be kept at the minimal level needed to achieve the desired results, as too high a feed rate can cause porosity.
Finally, a die design that allows for adequate wall thickness and depth will help reduce the risk of porosity. By taking these steps, aluminum die casting can be protected from porosity and the problems it can cause.
Conclusion
To prevent porosity in aluminum die casting, it is essential to use the right temperature and pressure settings, employ the proper alloy and use quality die casting machines.
Additionally, it is essential to ensure that the molten aluminum has been degassed correctly and that the cavities and runners are clear of any obstructions that could cause turbulence and air pockets.
Consistent maintenance of the die casting machine and pre-treatment of the alloy before casting will also help reduce and prevent porosity.
Finally, creating a good working atmosphere for the die casting process is essential by using a clean and dry working environment, implementing proper ventilation systems, and using appropriate lubricants. At Sunrise Metal, we ensure our aluminum die casting follows the proper procedures to prevent porosity. By taking these measures, we guarantee the quality of aluminum die cast parts.
