Fillets and chamfers are important parameters in the Design for Manufacturability of parts to simplify the casting process and improve aesthetics. Most people often think of the geometric distinction between the two. But the answer goes beyond simple terms.

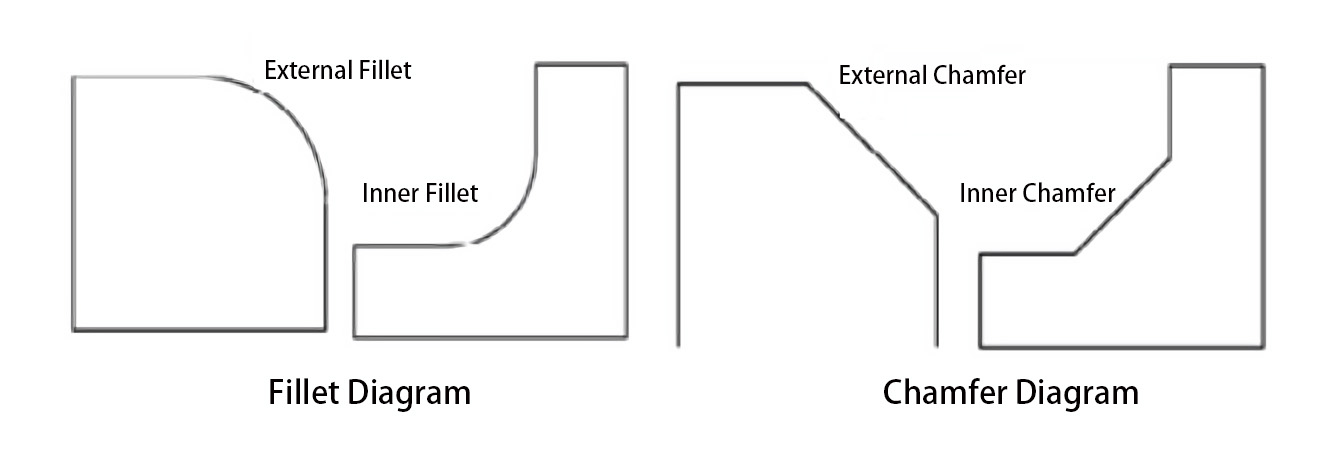

What is a Fillet?

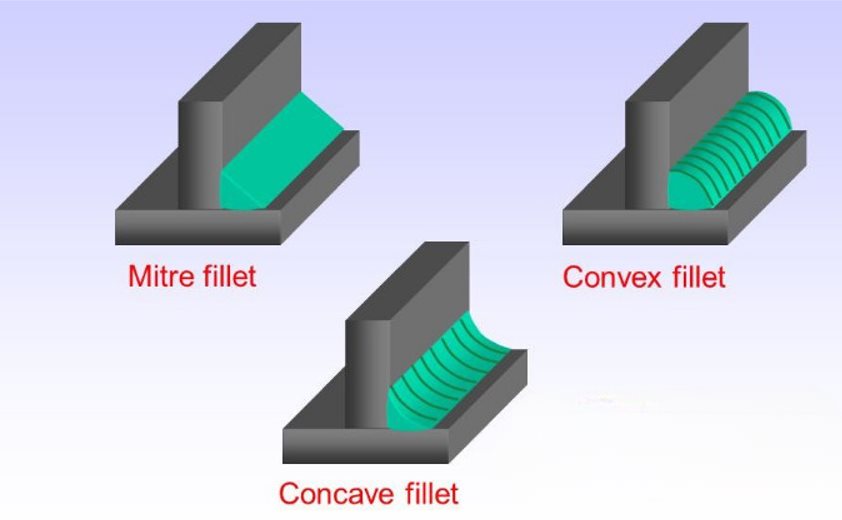

It is the rounding of the sharp edges of a component. It can be categorized into three types, which are concave, convex, and miter. However, standard fillets have concave interior surfaces, whereas external surfaces are convex. The outer rounded corners are called radii. Hence the term “fillet radii” is often used together.
Deciding on the correct fillet radius is essential for ensuring smooth production cycles. While a larger fillet radius may simplify the casting process, it may fail to meet a product’s functional and aesthetic requirements. So, choosing an optimum fillet is crucial in die casting part design.
What is a Chamfer?
It is a slope formed along the edge or corner of a component. These edges and corners are sharp and straight instead of curves like fillets. It imparts a uniform aesthetic while protecting the edges from damage. But their sharpness can cause deformation in stressed situations. Specific sections of high-stress concentration mostly use chamfers.

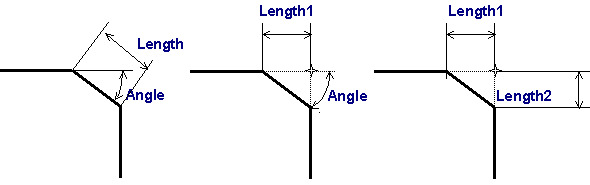

These shapes are categorized into two sub-groups based on the angle or slope –
- 45°Chamfers – Allows effective removal of burs during drilling operations.
- 60°Chamfers – Mostly used in the mechanical design of bolts/screws. It is also utilized in grooves, furrows, or bevels after finishing.
SolidWorks Design of Fillet vs Chamfer
SolidWorks is a versatile software for mechanical part design. Professional mechanical designers heavily rely on SolidWorks to design tools using either fillets, chamfers, or both. The key differences between them are highlighted below –
- Requires multiple sets of bits to apply fillets of varying radii on a tool. But a chamfer doesn’t need any specifications. Instead, a well-specified chamfer measurement can suit the entire production process.
- Filleting often involves complex machining, contributing to a higher initial cost of production compared to designing chamfers.
- It also takes more production time with different fillet sizes. But a considerably faster production rate is possible with the chamfer’s universal or one-size-fits-all feature.
- Filleting results in smooth edges, which are more desirable in modern consumer-grade products. But chamfers produce sharp edges, requiring careful handling in operations.
- Fillets ensure stress distribution over a larger radius. They eliminate deformation, making them suitable for exterior parts.
- Fillets are often more complicated to fabricate. But chamfers don’t require as much effort.
Choosing between Chamfer and Fillet
An appropriate choice of the two can increase the part’s efficiency. The ease of production time, cost, and effort depends on the right approach. Understanding the insightful mechanical points can help to choose the right one –
- Most industrial designs prioritize fillets. Mostly because of its aesthetically pleasing features. A higher radius means better design quality.
- A single tool can manufacture many different chamfers. But different radii of fillets need multiple radii tools.
- Implementing chamfers is somewhat simpler than machining certain mechanical parts from blocks or bars.
- High machining often chooses chamfers for low-cost and time-efficient processing.
- Manual processing takes more time for fillets. So, chamfer may be faster in this regard. Though the production time is nearly the same during CNC machining
- Filleting tool across the entire edge is a smart choice for any part. Increased radii can further relieve the applied stress.
- Crafting a sharp corner in CNC milling parts possesses many mechanical difficulties. A spinning tool is necessary to carve the material, which is quite challenging. It leaves a radius during the turnout at corners.
- But applying fillets inside the vertical edges can help outrun the spinning tool. Precise manufacturing practices use this strategy.
- Chamfers initiate disrupted stress concentrations across the edges which eventually causes accelerated rusting.
- Using chamfered edges, surfaces, or holes based on the design requirements is okay. But the exterior must remain non-critical in the design for satisfying outcomes.
- Uniform, even, and somewhat stagnant stress concentrations are desirable properties of load-bearing mechanical parts. And fillets are the acclaimed answer due to the evenly concentrated stress. Implementing fillets can immediately resolve concentrated stress lines and points.

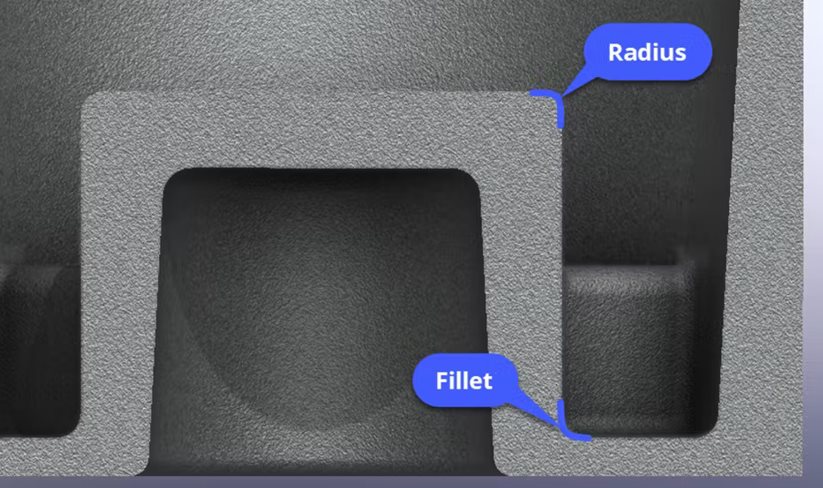

Role of Fillets and Chamfers in Die Cast Parts
Fillet radii employed in casting can improve the overall quality. Also, these smooth surface finishing can contribute to additional load-bearing strength. Spreading the applied stress across the radius makes it more durable in heavier applications. Hence, fillet radii are usually preferred in die casting.
Chamfers aren’t very frequent in die casting due to compromised stress distribution. Only a handful of die-cast parts may require angled or sloped bevels.
