Shrinkage Porosity

Shrinkage naturally occurs during the solidification of a casting. Anything imperfection during casting can lead to uneven solidification to trigger internal pores. The formation of holes/pores inside the casting due to shrinkage is called shrinkage porosity.

Improper, imbalanced, or incompatible contraction during solidification controls this defect. It’s possible to detect the intensity-number of pores using X-rays. However, this defect should not be confused with gas porosity defect which also comprises pores.

This article briefly looked into the causes/sources, effects, and remedial measures for shrinkage porosity.

Characteristics of Shrink Pores in Die Casts

Some of the recognized features of the defect in die-casting parts include –

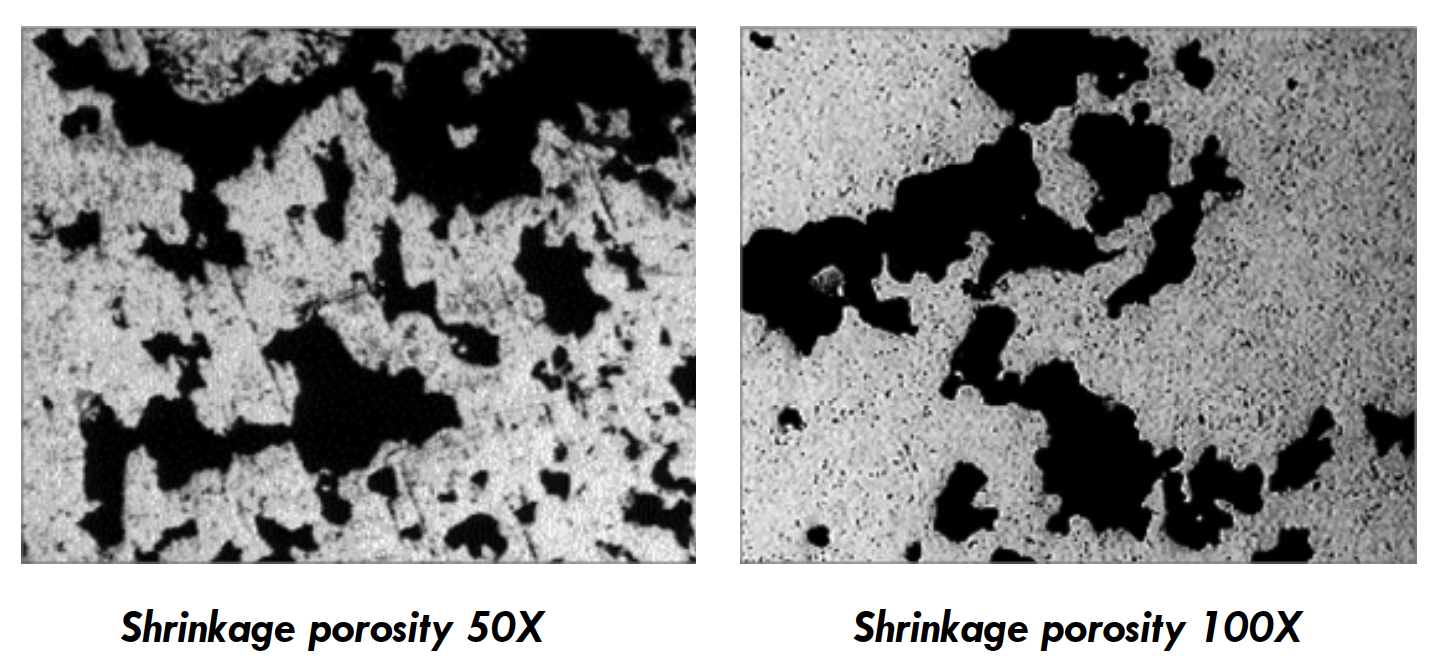

1. Tiny holes-pores in one or more clusters around a particular cross-sectional area.
2. Aluminum metal alloysare considerably prone to high shrinkage.
3. Pores mostly appear near thicker parts at the riser root close to the inner runner.
4. Transition points regarding wall thickness and flat surfaces are heavily affected.
5. Fractures look gray, light yellow, gray-black, or gray-white after heat treatment.
6. The pores seem cloudy and somewhat filamentous on close inspection (X-rays).

Sources of Die-Casting Shrinkage Pores

The pouring, injection, and solidification stages can all contribute to the shrinkage porosity defect. Even the material or mold cavity can be responsible on certain occasions. However, the top antagonists to result in the defect include –

• The molten metal or metal alloys fail to fully supplement the casing. It leaves empty spaces to form shrinkage holes during solidification.
• Extremely high pouring temperatures hinder the gradient distribution. Thus, the uneven heat distribution may result in the shrinkage pores.
• A low injection ratio often fails to maintain the speed for liquid uniformity. Imbalanced injection takes place to encourage hole formation.
• Minimal boosting pressure is another issue to triggers shrink pores. It can easily alter the metal injection process, causing significant damage.
• The inner gate can also cause pores upon being too thin or too small. Premature solidification occurs to prevent liquid metal from feeding.
• Drastic changes in the casting structure after pouring the metal are also responsible. It can generate hot spots across casting cross-sections.
• Insufficient pouring of the metal also hinders uniform cooling. Even injecting thinner material can cause an issue regarding shrinkage holes.

Effects of Die Casting Shrink Pores

The most noteworthy effects of having shrinkage porosity in die casts include –

1. Worsening of the defect with a gradual increase in size and shape of the holes.
2. The eventual formation of one or more leak paths through interconnected pores.
3. Poor or compromised mechanical strength due to continuous hole extension.
4. Partial to complete failure on impact or compression under heavy pressure.

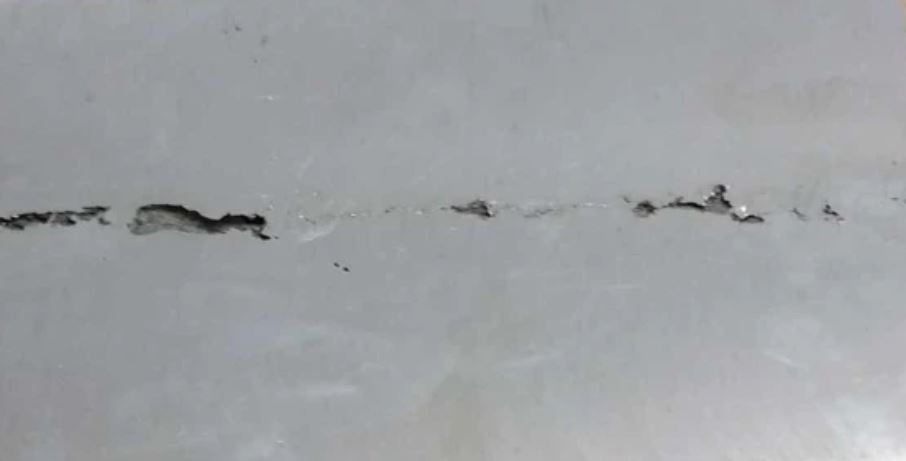

5. Unsuitable or unfavorable outer distortions to make aesthetically unpleasant.

Preventing the Formation of Shrinkage Pores

Implementing the rightful process using precise die casting design parameters is the key to pore-free casting. The following actions can help avoid the formation of shrink porosity –

• Uniform Wall Thickness –Uneven transition from thick to thin wall or vice versa must be avoided. The wall should remain uniform across the cavity whereas transitions must have an even thickness.
• Decreasing Thermal Joint –The heavy thermal joint between fillet edges and casting is an underrated reason for shrinking pores. Using hollow rips or similar structures can effectively decrease the thermal joint.
• Inner Gate Specification –Modification of the inner gate for a thicker wall and large area also helps. Superior pressure distribution can further ease the overall feeding effect of liquid metal alloys.
• Temperature Control –Proper temperature control not only reduces porosity but also enables minimal contamination. The warming temps of molten metal alloy must follow standard guidelines.
• Proper Injection Process –The required injection ratio must coincide with the desired outcome and guidelines. It’s essential to maintain a reasonable speed and ratio to achieve the perfect material boosting.
• Change in Cast Structure –Some cavity molds are defective from the start whereas some others become defective. It’s essential to use no-defect new casting or eliminate the flaws as soon as possible.
• Balanced Cooling –Thicker parts take more time to cool down than the thinner or standard parts. Balancing the cooling speed by letting the thick part cool somewhat faster can surely help.

Die-casting parts are subjected to cracks, marks, and holes linked to one another. It’s a must to ensure a precise, perfect, and proper adjustment of the process to avoid flaws. A uniform solidification of the metal or metal alloy across the mold cavity can eliminate shrinkage porosity. Manufacturers must aim to minimize or eliminate porosity in die casting as the slightest defect can lead to severe damage.
