Zamak – Conventional Category of Zinc Alloys

Modern zinc die casting remains heavily dependent on conventional Zamak, a dedicated alloy category. There are two fundamental families to categorize zinc die-casting alloys – ZAMAK and HF. The former has been in use for nearly a century whereas the latter is more of a recent development.

This article will briefly inquire about the zinc-based Zamak, diving into its basic features and advantages.

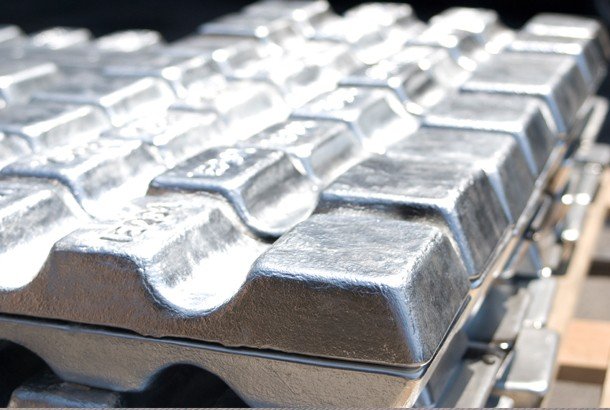

What Does Zamak Mean?

It’s more of a family only consisting of particular alloys of Zn (Zinc). Cu (Copper, Mg (Magnesium), and Al (Aluminum) are the main elements to make Zamak. Even ‘ZAMAK’ itself points to the composition, originating from the integration of acronyms for Z (Zn), A (Al), MA (Mg) and K (Cu).

Copper is Kupfer in German and hence, the K. Zamac instead of Zamak is also in use, replacing the German K with English C. These alloys have been in the American casting industry since 1929. Despite the initial use being limited to decorative purposes, they now cover many important uses.

Zamak Characteristics

The mechanical or physical properties vary from one member to the other in Zamak. But all the alloys share some steadfast features, including :

• Highly resisting alloys
• Steady 4% aluminum.
• Abundantly available.
• Large-scale production.
• Good casting features.
• Minimized impurities.
• Aging in a longer term.

Steady 4% aluminum refers to the presence of nearly 4% Al content in Zamak alloys. It’s the preferred percentage to maintain the required strength-hardness balance.

Common Zamak Alloys

Zamak is the conventional zinc alloy family with members named after their sequential development. This naming can be preceded by a certain word, either Alloy or Zamak. The alloys in the series are –

• Zamak 2 (Alloy 2)– A high amount of copper (≈ 3%) initiates several property changes. It offers minimal growth, low elongation, and quality performance. Zamak 2 has been a great bearing alloy without wear inserts and/or bushings.
• Zamak 3 (Alloy 3)– It’s the most popular Zamak across North America due to its excellent balance of properties. Castability, finishing, stability – everything is great in this alloy. Industries use alloy 3 specs as the standard for other zinc materials.
• Zamak 4 (Alloy 4)– This exclusive material is specifically developed for the Asian market. Its main feature includes reduced die soldering effects while keeping up the other properties. Zamak 4 technically maintains a balance between 3 and 5.
• Zamak 5 (Alloy 5)– Z5 has been the ultimate Zamak preference across Europe. This one is comparable to Zamak 3 in every aspect as the property values are close. However, Zamak 5 slightly compromised ductility against a superiority in others.
• Zamak 7 (Alloy 7)– Strict impurity configuration with superficial Mg contents makes Z7. This modified Zamak 3 version comes with higher fluidity, finishing, and ductility. Recently derived HF (High Fluidity) zinc alloys are now replacing its use.

There are variations available within each Zamak based on the casting process. Primarily, these alloys take different names based on Ingot Casting or Continuous Casting.

Zamak Composition Standards

Zamak is more of a commercial term that has different alphanumeric expressions. Each zinc alloy has distinctive names in different country standards.

Benefits of Zamak Material

These zinc-based casts can effectively deliver usable mechanical advantages for manufacturers. Among all others, the most mentionable conveniences of Zamak include –

1. Balanced strength and hardness for a light density.
2. Excellent thermal dissipation with superior fluidity.
3. Satisfying voluminous finishing at high temperatures.
4. Exertion of no harmful influence on human health.
5. Adaption to customer demands with precise finish.
6. Sufficiently energy efficient and environment-friendly.
7. Almost no difficulty in their cleanup or maintenance.

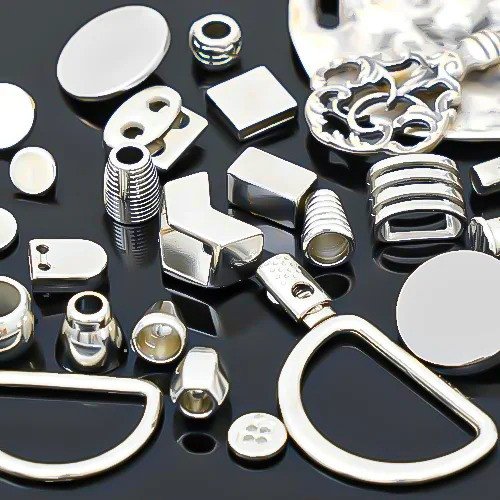

Different Zamak Applications

Zinc Zamak has many applications, ranging from simple to complex uses. Good versatility makes these alloys a great choice for consumers and producers. The most widespread use case scenario includes –

• Construction– High strength, hardness, and stability make Zamak an ideal option for efficient and easy construction frameworks.
• Electronics– Sophisticated electronics don’t need Zamak but several large-scale production switches to these alloys for large-sized pieces.
• Automobiles– Superb resistance at elevated temperatures combined with great finishing allows Zamak to be used in different car parts.
• Decoration –Zamak’s initial uses were limited to decorative or ornamental applications, including children’s toys and sports gear.

Zamak seems great with its superior quality and performance. Utility of Z3 and Z5 are often comparable to their aluminum counterparts. But Al still exceeds zinc when it comes to cost, utility, and prototyping.
